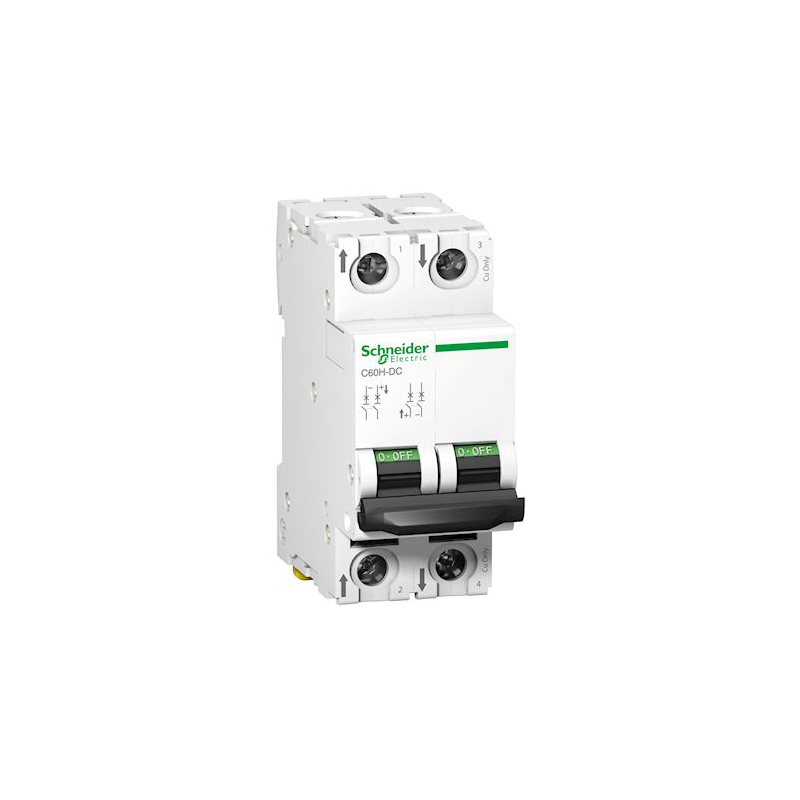

| Manufacturer | Schneider Electric |
| Reference | A9N61531 |
| EAN | 3606480424304 |
| Customs code | 85362010 |
| Product line | C60 |
| Type of voltage | DC |
| Suitable for flush mounting | No |
| Width in number of modules | 2 |
| Embedding depth | 44 mm |
| Calibre | 16 A |
| Overvoltage category | 4 |
| Curve | C |
| Degree of pollution | 3 |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Number of poles protected | 2 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 25,0 .. 1,0 mm² |
| Ambient temperature in operation | -25,0 70,0 °C |
| Tension | 440 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 500 V |
