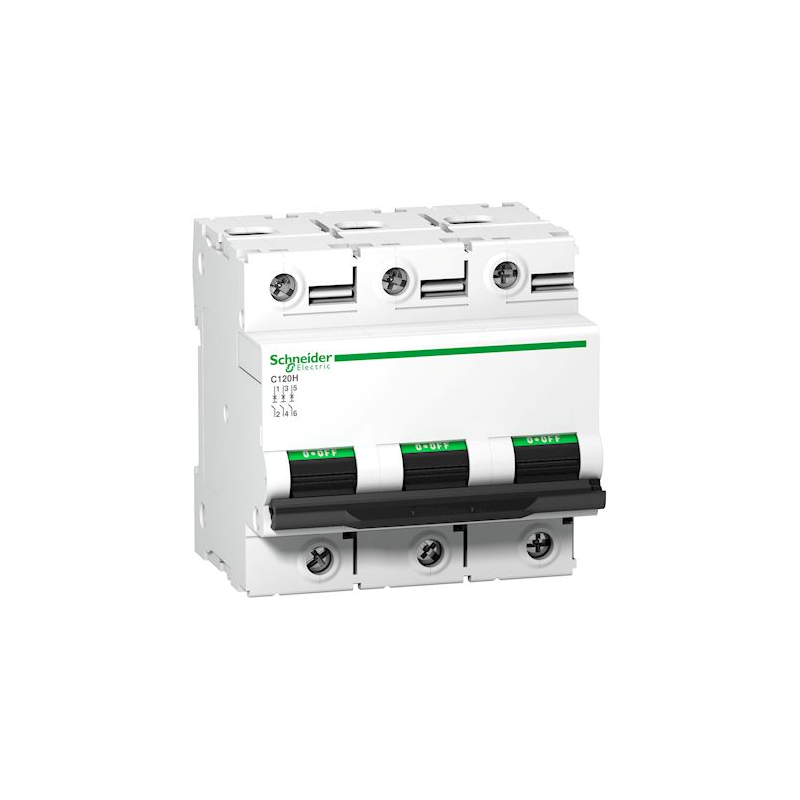

| Manufacturer | Schneider Electric |
| Reference | A9N18468 |
| EAN | 3606480380396 |
| Customs code | 85362090 |
| Product line | C120 |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 4.5 |
| Embedding depth | 44.0 mm |
| Calibre | 80.0 A |
| Curve | C |
| Frequency | 50,0 .. 60,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 3.0 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,5 .. 50,0 mm² |
| Ambient temperature in operation | -30,0 .. 60,0 °C |
| Tension | 400.0 V |
| Rated impulse withstand voltage (Uimp) | 6.0 kV |
| Rated insulation voltage (Ui) | 500.0 V |
