• -41%

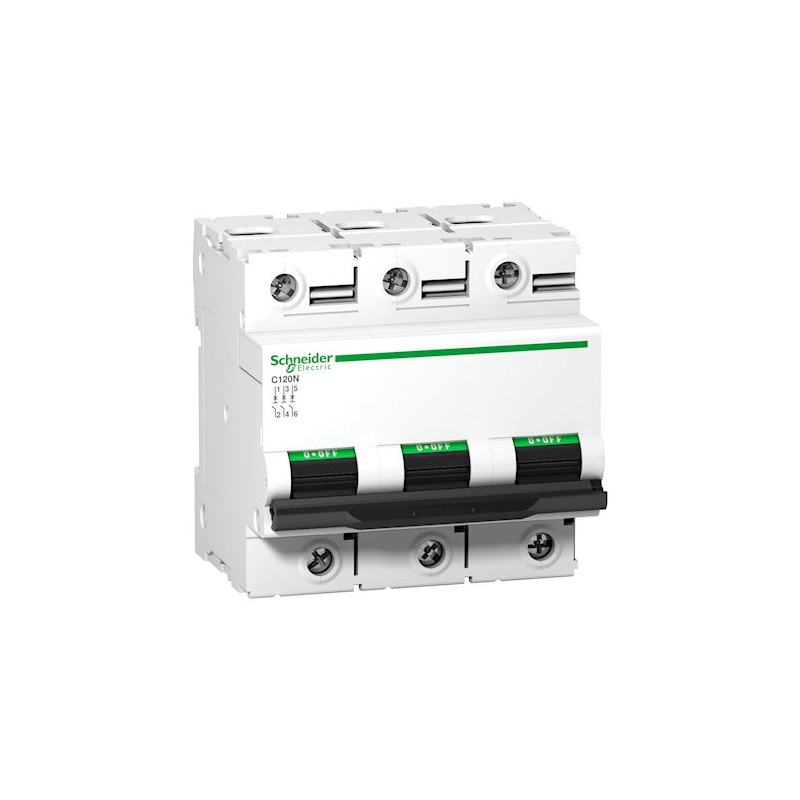

Miniature modular circuit breaker C120N Acti9 - 3P - 80A - curve D

A9N18387
3606480379581
Product line: C120, Protection class (IP): IP20
€333.24
€196.61 Save 41%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Product characteristics

Acti9 C120N - modular circuit breaker 3P 80A curve D 10kA
Protection class (IP)
IP20

main features

  • Product line: C120
  • Protection class (IP): IP20
  • reference: Schneider Electric A9N18387 / EAN: 3606480379581
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9N18387
EAN3606480379581
Customs code85362090
Product lineC120
Electrical information
Type of voltageAC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules4.5
Embedding depth44.0 mm
Technical specifications
Calibre80.0 A
CurveD
Frequency50,0 .. 60,0 Hz
Protection class (IP)IP20
Number of poles3.0
Neutral pole simultaneously disconnectedNo
Auxiliary products that can be combinedYes
Section of connection cable rigid1,5 .. 50,0 mm²
Ambient temperature in operation70,0 .. -25,0 °C
Tension400.0 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated insulation voltage (Ui)500.0 V

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationProduct sheet - Schneider Electric A9N18387
documentationEnvironmental profile - Schneider Electric A9N18387
