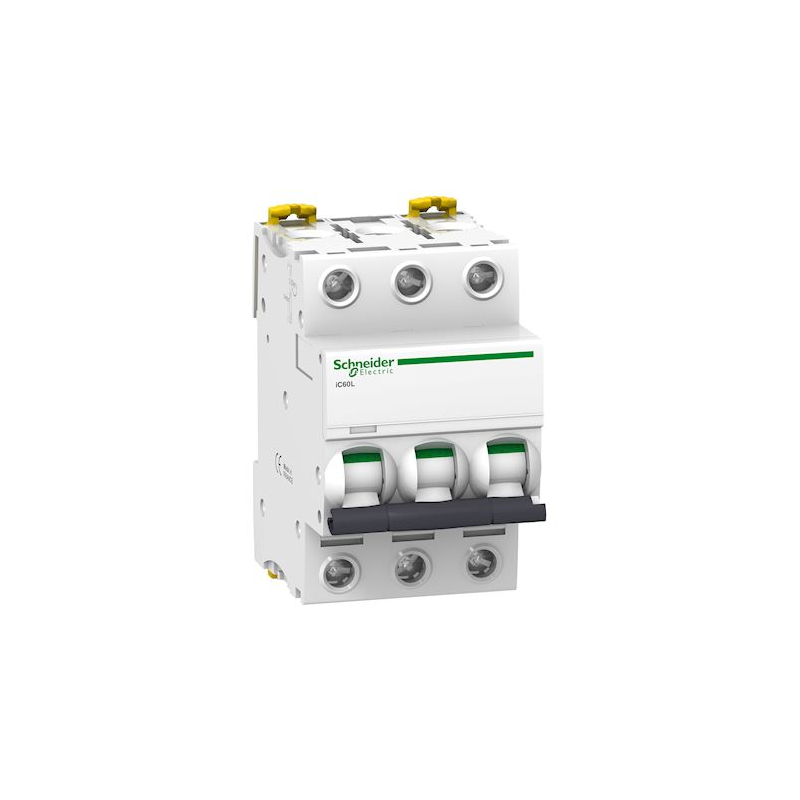

Acti9 iC60L - circuit breaker - 3P - 20A - curve C - 400Vac - 15000A/25kA

A9F94320
3606480084430
Product line: Acti9 ic60, Protection class (IP): IP20
€241.99
€193.59 Save 20%
Tax included Logistics platform stock: 12 (+ on order) - Delivery within 16 working days in Europe - Price for 1u.
Quantity
On order / 16 days

100% secure payments
Close
Description

Acti9 iC60L - circuit breaker - 3P - 20A - curve C - 400Vac - 15000A/25kA - A9F94320

Acti9 iC60L - circuit breaker - 3P - 20A - curve C - 400Vac - 15000A/25kA
Protection class (IP)
IP20

main features - Schneider Electric A9F94320

  • Product line: Acti9 ic60
  • Protection class (IP): IP20
  • reference: Schneider Electric A9F94320 / EAN: 3606480084430
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9F94320
EAN3606480084430
Customs code85362010
Product lineActi9 ic60
Electrical information
Type of voltageAC/DC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules3.0
Embedding depth44.5 mm
Technical specifications
Calibre20.0 A
CurveC
Frequency50,0 .. 60,0 Hz
Protection class (IP)IP20
Number of poles3.0
Number of poles protected3.0
Neutral pole simultaneously disconnectedNo
Auxiliary products that can be combinedYes
Section of connection cable rigid1,0 .. 25,0 mm²
Ambient temperature in operation-35,0 .. 70,0 °C
Tension400.0 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated insulation voltage (Ui)500.0 V

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Schneider Electric A9F94320
documentationProduct sheet - Schneider Electric A9F94320
documentationInstructions - Schneider Electric A9F94320
documentationInstructions - Schneider Electric A9F94320
documentationEnvironmental profile - Schneider Electric A9F94320
