Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.
See all products Schneider Electric
You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

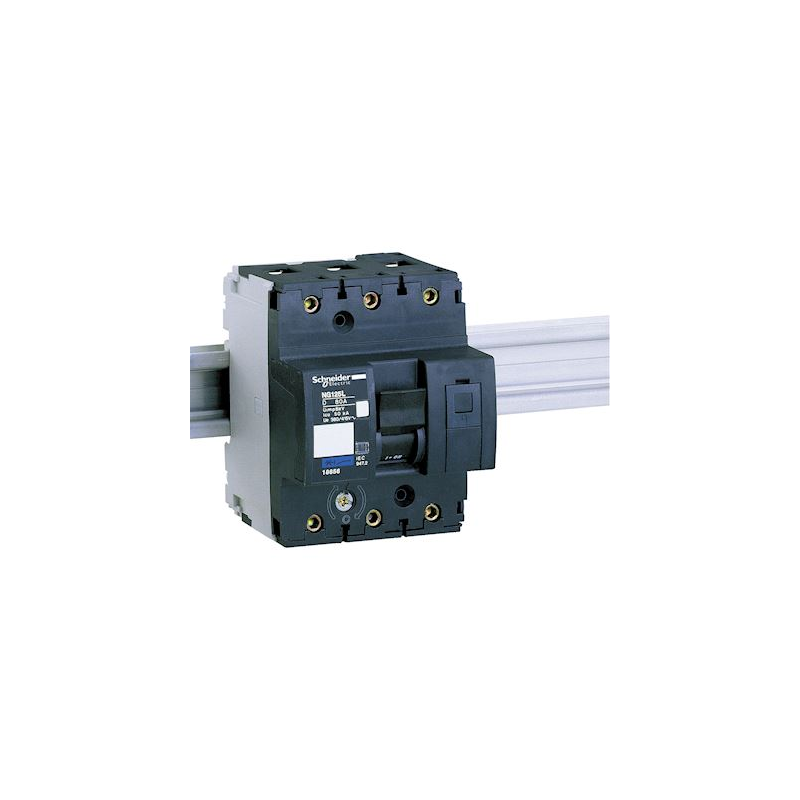

| Manufacturer | Schneider Electric |
| Reference | 18856 |
| EAN | 3303430188568 |
| Customs code | 85362090 |
| Product line | Ng125 |
| Type of voltage | AC/DC |
| Suitable for flush mounting | No |
| Width in number of modules | 4.5 |
| Embedding depth | 47.0 mm |
| Calibre | 80.0 A |
| Curve | D |
| Frequency | 50,0 .. 60,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 3.0 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 16,0 .. 70,0 mm² |
| Ambient temperature in operation | 70,0 .. -30,0 °C |
| Tension | 415.0 V |
| Rated impulse withstand voltage (Uimp) | 8.0 kV |
| Rated insulation voltage (Ui) | 690.0 V |
