Acti9 C120H modular circuit breaker 4P 100A curve C 15kA

A9N18480
3606480380518
Product line: C120, Protection class (IP): IP20
€505.14
€298.03 Save 41%
Tax included Logistics platform stock: 4 (+ on order) - Delivery within 16 working days in Europe - Price for 1u.
Quantity
On order / 16 days

100% secure payments
Close
Description

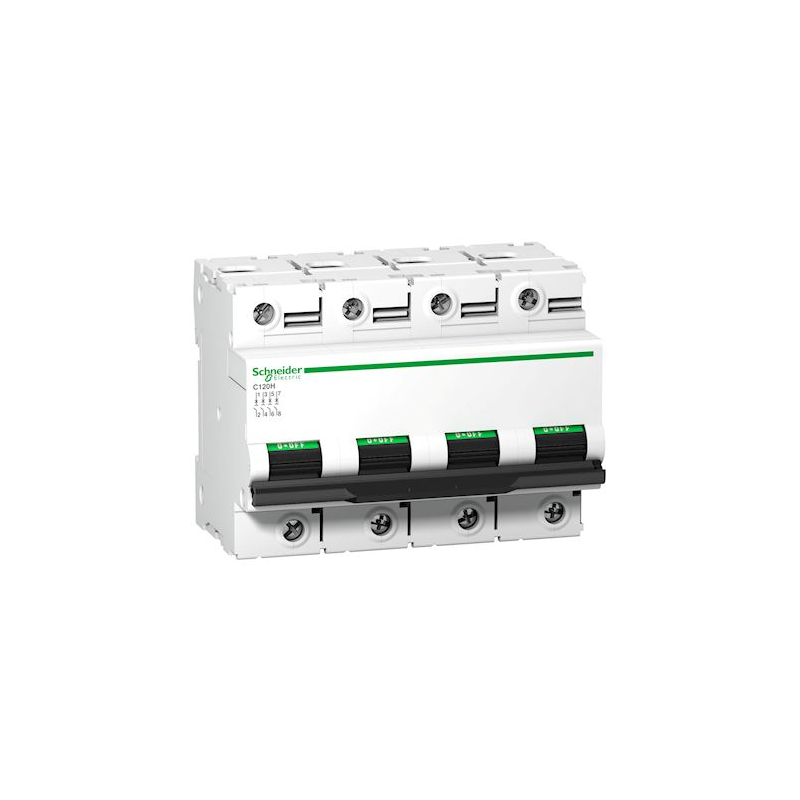

Acti9 C120H modular circuit breaker 4P 100A curve C 15kA - A9N18480

Acti9 C120H modular circuit breaker 4P 100A curve C 15kA
Protection class (IP)
IP20

main features - Schneider Electric A9N18480

  • Product line: C120
  • Protection class (IP): IP20
  • reference: Schneider Electric A9N18480 / EAN: 3606480380518
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9N18480
EAN3606480380518
Customs code85362090
Product lineC120
Electrical information
Type of voltageAC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules6.0
Width in number of modules6
Embedding depth44.0 mm
Embedding depth44 mm
Technical specifications
Calibre100.0 A
Calibre100 A
Overvoltage category4
Energy limitation class (I²t)3
CurveC
Degree of pollution3
Frequency50,0 .. 60,0 Hz
Frequency60,0 .. 50,0 Hz
Protection class (IP)IP20
Number of poles4.0
Number of poles4
Number of poles protected4.0
Number of poles protected4
Neutral pole simultaneously disconnectedYes
Auxiliary products that can be combinedYes
Section of connection cable rigid1,5 .. 50,0 mm²
Ambient temperature in operation-30,0 .. 60,0 °C
Ambient temperature in operation-30,0 60,0 °C
Tension400.0 V
Tension400 V
Rated impulse withstand voltage (Uimp)6.0 kV
Rated impulse withstand voltage (Uimp)6 kV
Rated insulation voltage (Ui)500.0 V
Rated insulation voltage (Ui)500 V

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationProduct sheet - Schneider Electric A9N18480
documentationEnvironmental profile - Schneider Electric A9N18480
