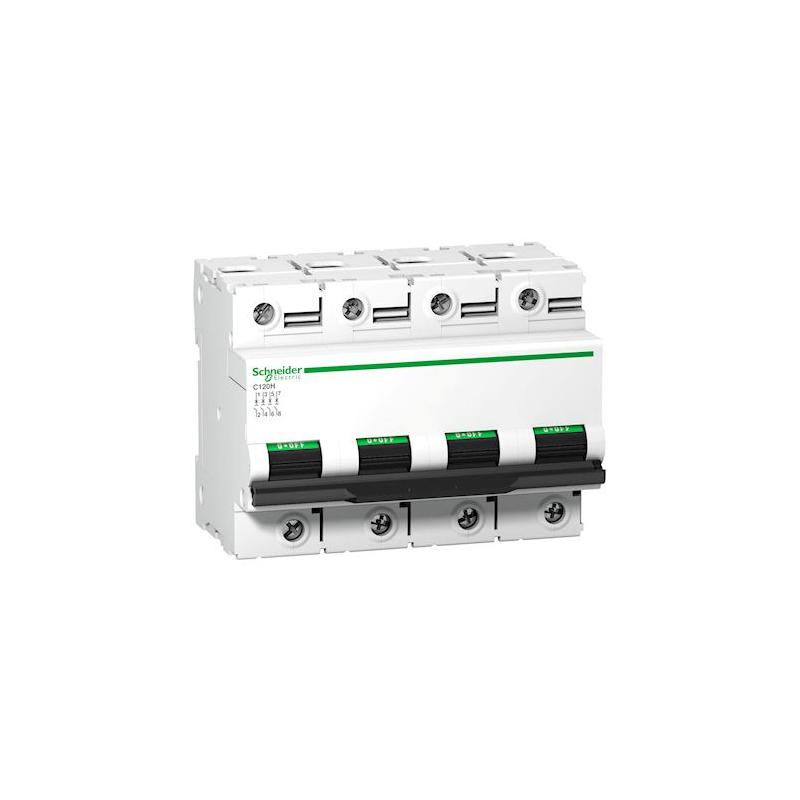

| Manufacturer | Schneider Electric |
| Reference | A9N18481 |
| EAN | 3606480380525 |
| Customs code | 85362090 |
| Product line | C120 |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 6 |
| Embedding depth | 44 mm |
| Calibre | 125 A |
| Overvoltage category | 4 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 3 |
| Frequency | 60,0 .. 50,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4 |
| Number of poles protected | 4 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 50,0 .. 1,5 mm² |
| Ambient temperature in operation | -30,0 60,0 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 500 V |
