| Manufacturer | Schneider Electric |

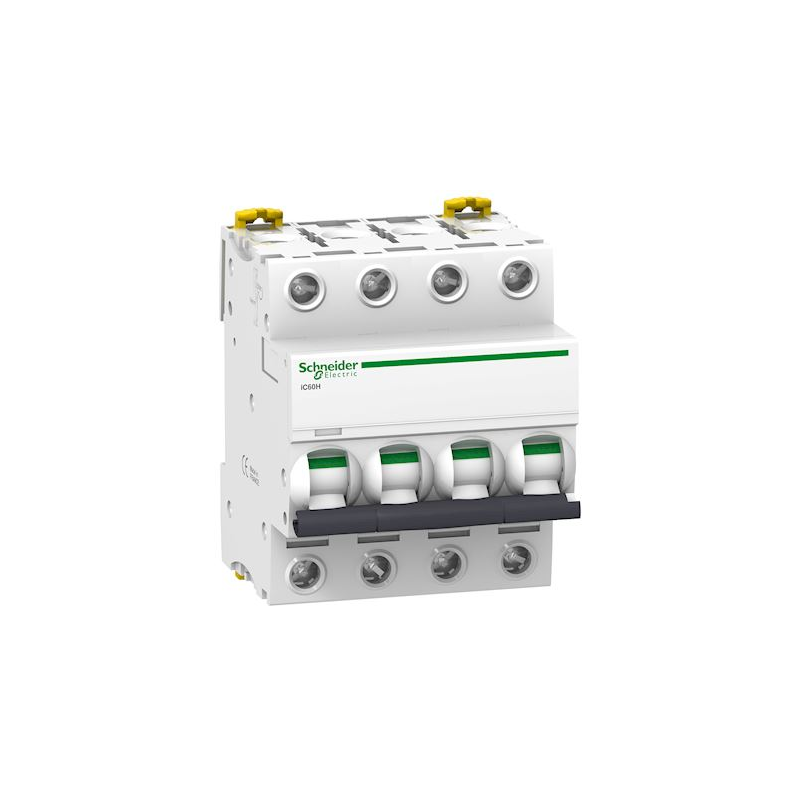

| Reference | A9F87416 |
| EAN | 3606480096112 |
| Customs code | 85362010 |
| Product line | Acti9 ic60 |
| Type of voltage | AC/DC |
| Suitable for flush mounting | No |
| Width in number of modules | 4.0 |
| Width in number of modules | 4 |
| Embedding depth | 44.5 mm |
| Calibre | 16.0 A |
| Calibre | 16 A |
| Overvoltage category | 4 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 3 |
| Frequency | 50,0 .. 60,0 Hz |
| Frequency | 60,0 .. 50,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4.0 |
| Number of poles | 4 |
| Number of poles protected | 4.0 |
| Number of poles protected | 4 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 25,0 mm² |
| Ambient temperature in operation | -35,0 .. 70,0 °C |
| Ambient temperature in operation | -35,0 70,0 °C |
| Tension | 400.0 V |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 6.0 kV |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 500.0 V |
| Rated insulation voltage (Ui) | 500 V |
