• -20%

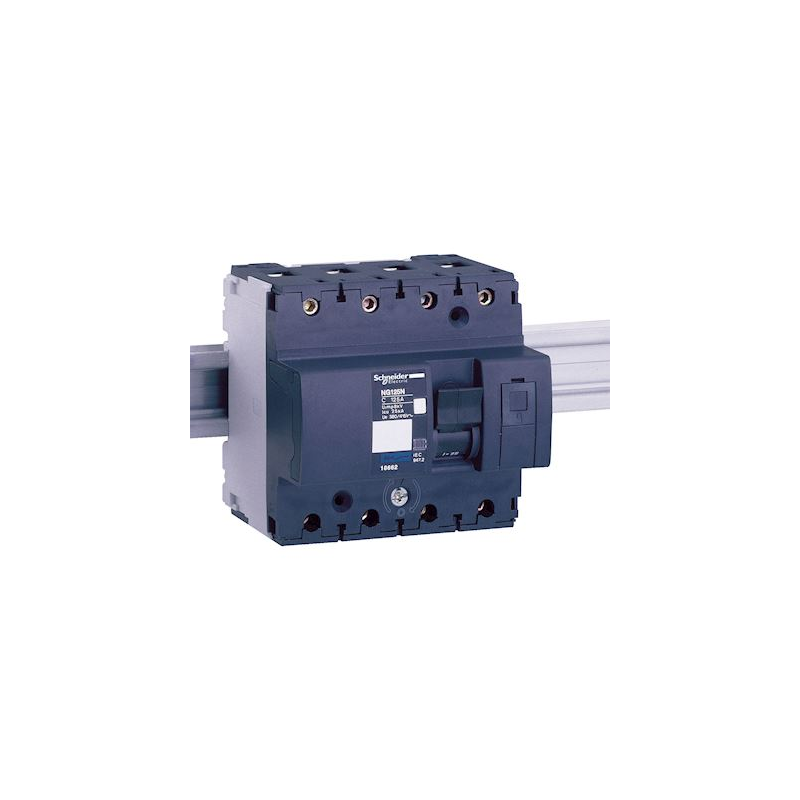

Acti9 NG125N - modular circuit breaker - 4P - 125A - curve C 25kA

18661
3303430186618
Product line: Ng125, Protection class (IP): IP20
€728.70
€582.96 Save 20%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Acti9 NG125N - modular circuit breaker - 4P - 125A - curve C 25kA - 18661

Acti9 NG125N - modular circuit breaker - 4P - 125A - curve C 25kA
Protection class (IP)
IP20

main features - Schneider Electric 18661

  • Product line: Ng125
  • Protection class (IP): IP20
  • reference: Schneider Electric 18661 / EAN: 3303430186618
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
Reference18661
EAN3303430186618
Customs code85362090
Product lineNg125
Electrical information
Type of voltageAC/DC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules6.0
Width in number of modules6
Embedding depth47.0 mm
Embedding depth47 mm
Technical specifications
Calibre125.0 A
Calibre125 A
Overvoltage category4
CurveC
Degree of pollution3
Frequency50,0 .. 60,0 Hz
Frequency60,0 .. 50,0 Hz
Protection class (IP)IP20
Number of poles4.0
Number of poles4
Number of poles protected4.0
Number of poles protected4
Neutral pole simultaneously disconnectedYes
Auxiliary products that can be combinedYes
Section of connection cable rigid16,0 .. 70,0 mm²
Ambient temperature in operation-30,0 .. 70,0 °C
Ambient temperature in operation-30,0 70,0 °C
Tension400.0 V
Tension400 V
Rated impulse withstand voltage (Uimp)8.0 kV
Rated impulse withstand voltage (Uimp)8 kV
Rated insulation voltage (Ui)690.0 V
Rated insulation voltage (Ui)690 V

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Schneider Electric 18661
documentationProduct sheet - Schneider Electric 18661
documentationInstructions - Schneider Electric 18661
documentationEnvironmental profile - Schneider Electric 18661
