| Manufacturer | Schneider Electric |

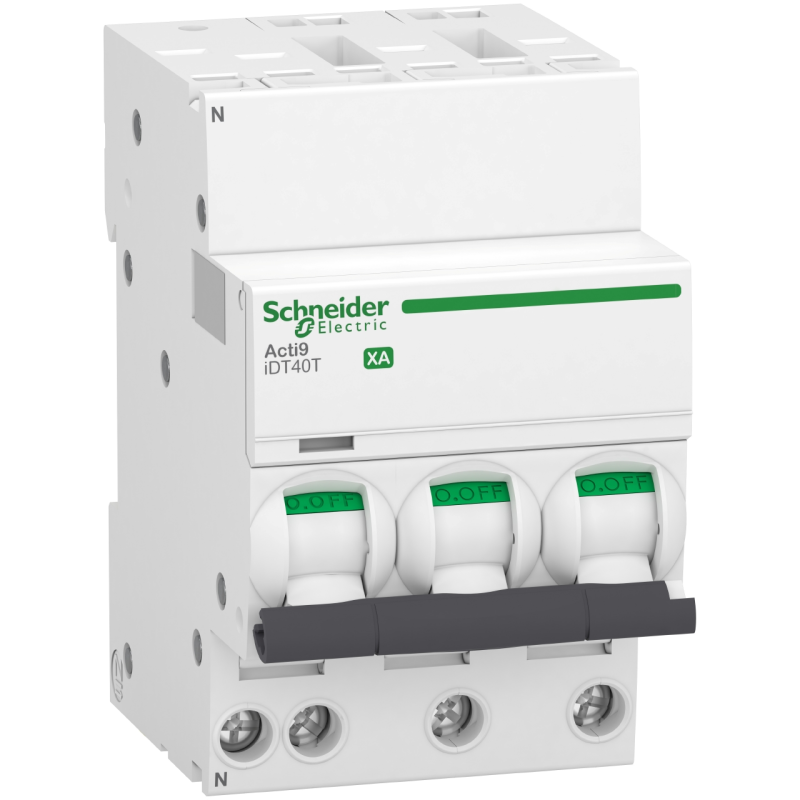

| Reference | A9PA2720 |
| EAN | 3606489568788 |
| Warranty | 1.5 year |
| Customs code | 85362010 |
| Product line | Acti9 idt40 |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 3.0 |
| Embedding depth | 44.0 mm |
| Calibre | 20.0 A |
| Curve | C |
| Frequency | 50,0 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4.0 |
| Neutral pole simultaneously disconnected | Yes |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 16,0 mm² |
| Ambient temperature in operation | -25,0 .. 70,0 °C |
| Tension | 400.0 V |
| Rated impulse withstand voltage (Uimp) | 4.0 kV |
| Rated insulation voltage (Ui) | 440.0 V |
Reference: GB2DB14
TeSys GB2-DB - circuit breaker for control circuit - 8A - 2P - 2D
Reference: M9F22263
Multi9 C60SP - circuit breaker - 2P - curve C - 63A 5kA 480Y/277V - UL1077
Reference: A9P24316
Acti9 iDT40N - modular circuit breaker - 3P - 16A - curve C - 6000A/10kA
Reference: A9PK1620
Acti9 iDT40K XA - modular circuit breaker auto/Screws - 1P+N 20A curve C - 4,5kA
Reference: A9F92210
Acti9 iC60L - circuit breaker - 2P - 10A - curve Z - 400Vac - 15000A/25kA
Reference: A9F87316
Acti9 iC60H - circuit breaker - 3P - 16A - curve C - 400Vca - 10000A/15kA
Reference: A9F74370
Acti9 iC60N - circuit breaker - 3P - 0,5A - curve C - 400Vca - 6000A/50kA
Reference: A9F75270
Acti9 iC60N - circuit breaker - 2P - 0,5A - curve D - 400Vca - 6000A/50kA
