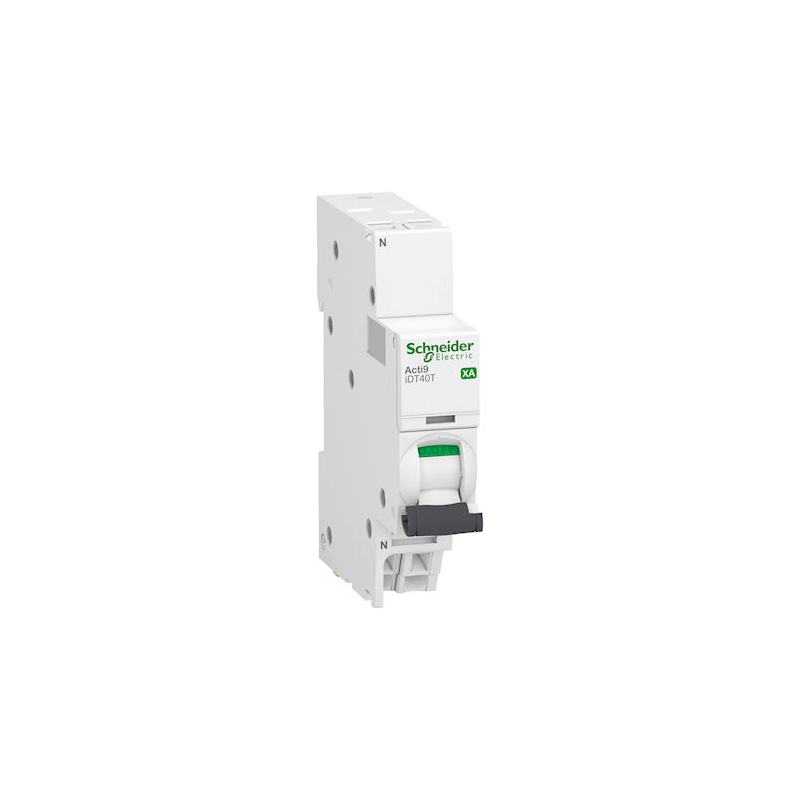

Circuit breaker 10A - iDT40T XA Acti9 - 6kA - curve C - 1P+N - bollard light auto from below

A9PA2610
3606489568115
Product line: Acti9 idt40, Protection class (IP): IP20
€55.80
€44.64 Save 20%
Tax included Delivery within 45 working days in Europe - Price for 1u.
Quantity
On order / 45 days

100% secure payments
Close
Description

Product characteristics

Acti9 iDT40 XA - modular circuit breaker automatic terminals - 1P+N - 10A - C - 4500A/6kA
Protection class (IP)
IP20

main features

  • Product line: Acti9 idt40
  • Protection class (IP): IP20
  • reference: Schneider Electric A9PA2610 / EAN: 3606489568115
Schneider Electric
Schneider Electric

Find all the products of the brand Schneider Electric at the best price on the store domeashop.com.

See all products Schneider Electric
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSchneider Electric
ReferenceA9PA2610
EAN3606489568115
Warranty1.5 year
Customs code85362010
Product lineActi9 idt40
Electrical information
Type of voltageAC
Installation / Implementation
Suitable for flush mountingNo
Dimensions and weight
Width in number of modules1.0
Embedding depth44.0 mm
Technical specifications
Calibre10.0 A
CurveC
Frequency50,0 Hz
Protection class (IP)IP20
Number of poles2.0
Neutral pole simultaneously disconnectedYes
Auxiliary products that can be combinedYes
Section of connection cable rigid1,0 .. 4,0 mm²
Ambient temperature in operation-25,0 .. 70,0 °C
Tension230.0 V
Rated impulse withstand voltage (Uimp)4.0 kV
Rated insulation voltage (Ui)400.0 V

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationDeclaration of conformity - Schneider Electric A9PA2610
documentationProduct sheet - Schneider Electric A9PA2610
documentationEnvironmental profile - Schneider Electric A9PA2610
