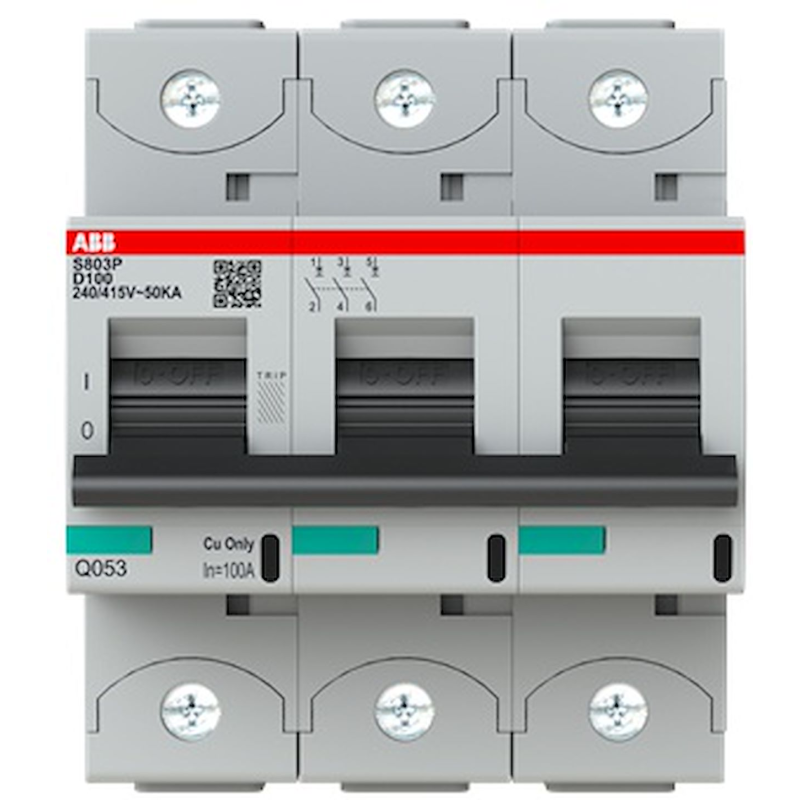

| Manufacturer | ABB |
| Reference | 2CCG001245R0001 |
| EAN | 7612271517144 |
| Customs code | 85362090 |
| Type of voltage | AC/DC |
| Width in number of modules | 4.5 |
| Embedding depth | 82.5 mm |
| Calibre | 100 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | D |
| Degree of pollution | 3 |
| Frequency | 50 .. 60 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 3 |
| Number of poles protected | 3 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1 .. 70 mm² |
| Ambient temperature in operation | -40 .. 70 °C |
| Tension | 400 V |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 690 V |
