• -20%

Ambient lighting bays surface-mounted to leds 400lm plastic IP66 IK10 SATI connected

062566
3414971404939
Protection class (IP): IP66, Color rendering index (CRI): 80 .. 89
€857.83
€686.27 Save 20%
Tax included Stock: 15 (+ on order) - Delivery within 8 working days in Europe - Price for 1u.
Quantity
In stock (15 u)

100% secure payments
Close
Description

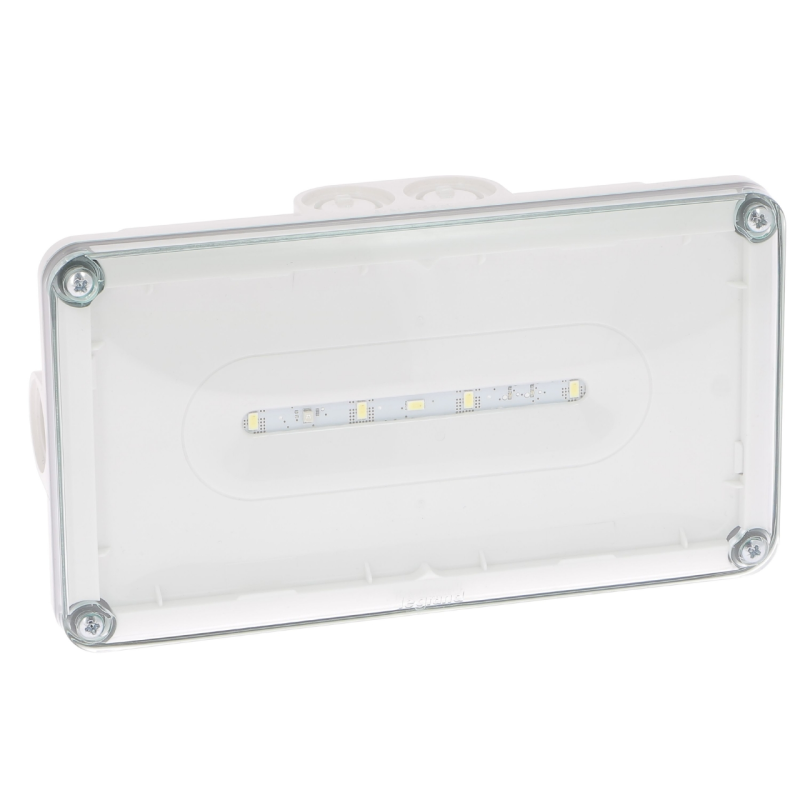

Ambient lighting bays surface-mounted to leds 400lm plastic IP66 IK10 SATI connected - 062566

Ambient lighting bays surface-mounted to leds 400lm plastic IP66 IK10 SATI connected
Luminous flux (Lumen)
360lm
Protection class (IP)
IP66
Class electric
class II
Color rendering index (CRI)
80 .. 89

main features - Legrand 062566

  • Protection class (IP): IP66
  • Color rendering index (CRI): 80 .. 89
  • reference: Legrand 062566 / EAN: 3414971404939
Legrand
Legrand

Find all the products of the brand Legrand at the best price on the store domeashop.com.

See all products Legrand
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerLegrand
Reference062566
EAN3414971404939
Customs code94056120
Design and finish
Case colorWhite
Material of the glassPlastic transparent
MaterialPlastic
Light information
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage207...253 V
Type of voltageAC
Dimensions and weight
Height164.5 mm
Height/depth62 mm
Width125 mm
Length225 mm
Depth72 mm
Technical specifications
Power supply of reliefStand-alone (battery individual)
DeviceLED driver constant current
Autonomy1 h
Rated current5...6 mA
Nominal current of the LED at constant current5..6 mA
Rated life L70/B50 at 25°C336000 h
Rated life L80/B10 at 25°C148000 h
Rated life L80/B50 at 25°C213000 h
Rated life L90/B10 at 25°C74000 h
Light distribution elementDiffuser
Luminous flux (Lumen)360 lm
Effective luminous flux400 lm
Protection class (IP)IP66
Protection class against impacts (IK)IK10
Number of poles4
Number of luminaire heads1
Fire protection "D"No
System power4 W
Lighting power4 W
Wire surface2.5 mm²
Light source includedYes
TypeLED not interchangeable
Switch typeNon-permanent
Type of installationSurface and recessed
Type of connectionScrew terminal
Type of light sourceLED
