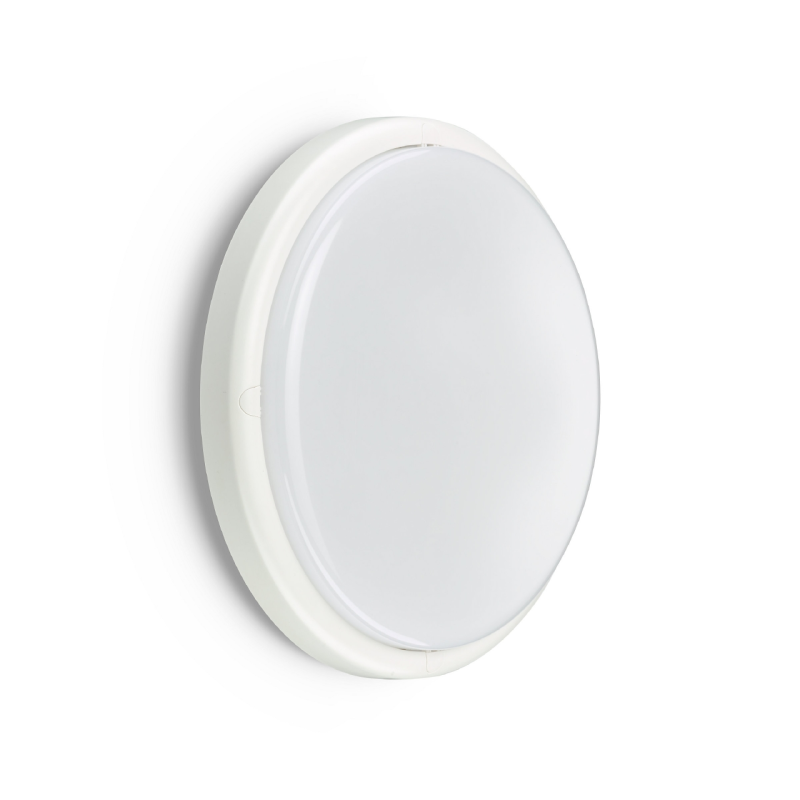

Ledinaire porthole gen2 WL070V LED11S/830 PSU II WH

522664
8719514522664
Product line: Ledinaire, Protection class (IP): IP65, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€76.91
€62.30 Save 19%
Tax included Stock: 2 (+ on order) - Delivery within 10 working days in Europe - Price for 1u.
Quantity
In stock (2 u)

100% secure payments
Close
Description

Ledinaire porthole gen2 WL070V LED11S/830 PSU II WH - 522664

Ledinaire porthole gen2 WL070V LED11S/830 PSU II WH
Color temperature
3000K
Beam angle
very extensive beam +80°
Protection class (IP)
IP65
Class electric
class II
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
25

main features - Philips 522664

  • Product line: Ledinaire
  • Protection class (IP): IP65
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: Philips 522664 / EAN: 8719514522664

High Quality Product

By offering an extended warranty to 5 years, Philips ensures a high level of quality of this product that will give you satisfaction for many years.
Philips
Philips

Find all the products of the brand Philips at the best price on the store domeashop.com.

See all products Philips
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerPhilips
Reference522664
EAN8719514522664
Warranty5 years
Customs code94051140
Product lineLedinaire
Design and finish
Case colorWhite
Material of the glassOpaline plastic
MaterialPlastic
Light information
Beam angleFaisceau très extensif +80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220.0...240.0 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Diameter285 mm
Height/depth64 mm
Technical specifications
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
Energy classD
Rated current50.0 mA
Rated life L70/B50 at 25°C50000 h
Luminaire efficiency95 lm/W
Light distribution elementDiffuser
Light emissionDirect
Recessed in insulated ceiling, fire protection "F with roof".Yes
Glare assessment (UGR)25
Power factor (cos phi)0.9
Effective luminous flux1100 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP65
Protection class against impacts (IK)IK08
Wall mountingYes
Number of lamps/modules6
Number of poles2
Max. number of luminaires per circuit breaker B1635
Max. number of luminaires per circuit breaker C1657
Fire protection "D"Yes
System power11 W
Light distributionSymmetrical
Wire surface1.5 mm²
Light source includedYes
Harmonic distortion rate20
Nominal room temperature according to IEC 62722-2-125.0 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Type of connectionAutomatic bollard
Type of connectionFile terminal
Color uniformity (mcAdam ellipse)SDCM5
Interface
Control via bluetoothNo
