| Manufacturer | Steinel |
| Reference | 002978 |
| EAN | 4007841002978 |
| Customs code | 85365080 |
| Product line | Control pro |
| Color | White |
| Surface finish | Matt |
| Material | Plastic |
| Nominal voltage | 230 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | No |
| Height | 120 mm |
| Width | 120 mm |
| Embedding length | 29 mm |
| Min. depth of the flush-mounted box | 66 mm |
| Angle de détection horizontal | 360 ° |
| Forced stop | Yes |
| Self-learning brightness function | Yes |
| Detection field of ground diameter | 20 m |
| Remote controllable | Yes |
| Current of start max. | 800 A |
| Current of start min. | 0.1 A |
| Running time min. | 30 s |
| Frequency | 50 .. 60 Hz |
| Optimum mounting height | 2.8 m |
| Protection class (IP) | IP20 |
| Interconnectable | Yes |
| Max. span width | 10 m |
| Adjustable trigger brightness | Yes |
| Forced operation | Yes |

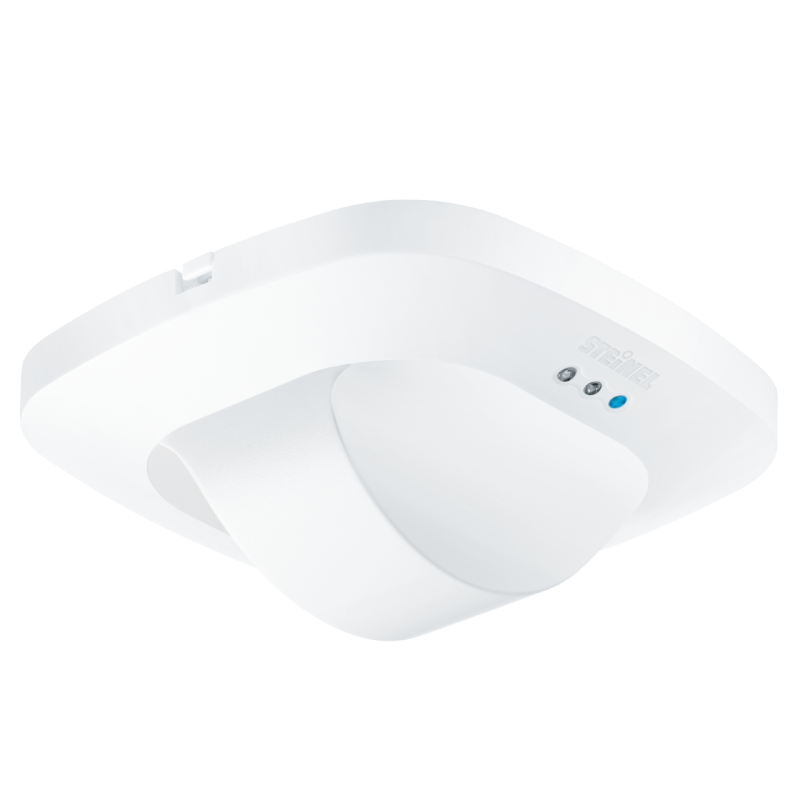

| Model type | Presence detector |
| Wall mounting | No |
| RAL number | 9010 |
| Max. detection range at H 2.5 | 10 m |
| Max. switching capacity | 2000 W |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Temperature | -25 .. 55 °C |
