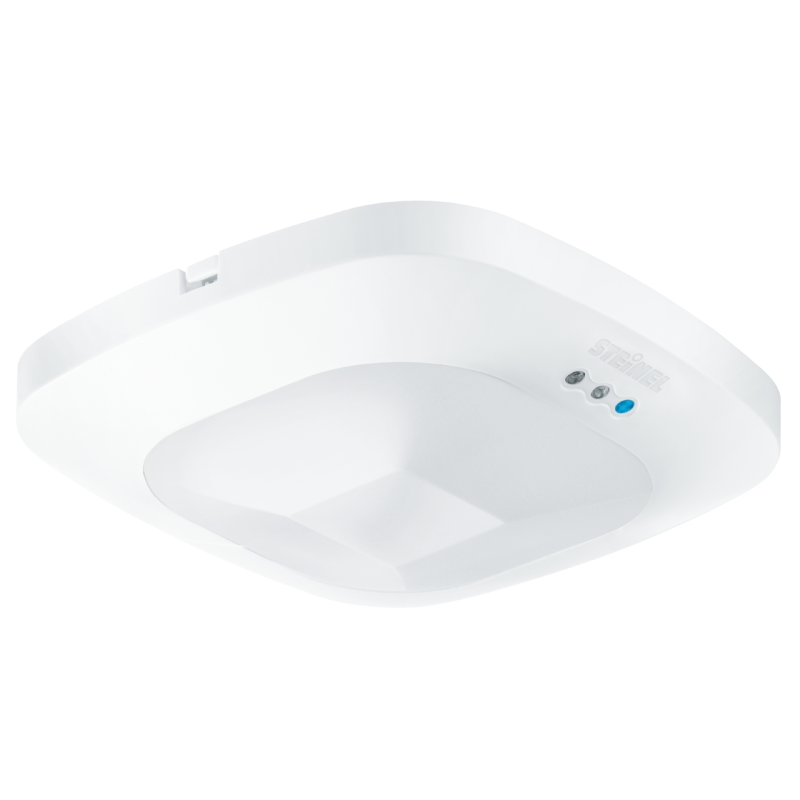

Sensor of movement HF 360 COM2 built-in white radius 12m

002848
4007841002848
Color: White, Product line: Control pro, Protection class (IP): IP20, Material: Plastic
€283.14
Tax included Delivery within 16 working days in Europe - Price for 1u.
Quantity
On order / 16 days

100% secure payments
Close
Description

Sensor of movement HF 360 COM2 built-in white radius 12m - 002848

Sensor of movement HF 360 COM2 built-in white radius 12m
Protection class (IP)
IP20

main features - Steinel 002848

  • Color: White
  • Product line: Control pro
  • Protection class (IP): IP20
  • Material: Plastic
  • reference: Steinel 002848 / EAN: 4007841002848
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSteinel
Reference002848
EAN4007841002848
Customs code85365080
Product lineControl pro
Design and finish
ColorWhite
Surface finishMatt
MaterialPlastic
Electrical information
Nominal voltage230 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Dimensions and weight
Height120 mm
Width120 mm
Embedding length30 mm
Min. depth of the flush-mounted box66 mm
Technical specifications
Angle de détection horizontal360 °
Forced stopYes
Self-learning brightness functionYes
Detection field of ground diameter12 m
Remote controllableYes
Control auxiliary possibleYes
Current of start max.800 A
Current of start min.0.1 A
Running time min.30 s
Frequency50 .. 60 Hz
Optimum mounting height2.8 m
Protection class (IP)IP20
InterconnectableYes
Max. span width6 m
Adjustable trigger brightnessYes
Forced operationYes
Model typePresence detector
Wall mountingNo
RAL number9010
Max. detection range at H 2.56 m
Max. switching capacity2000 W
Material qualityThermoplastic
Halogen-freeYes
Temperature-25 .. 55 °C
