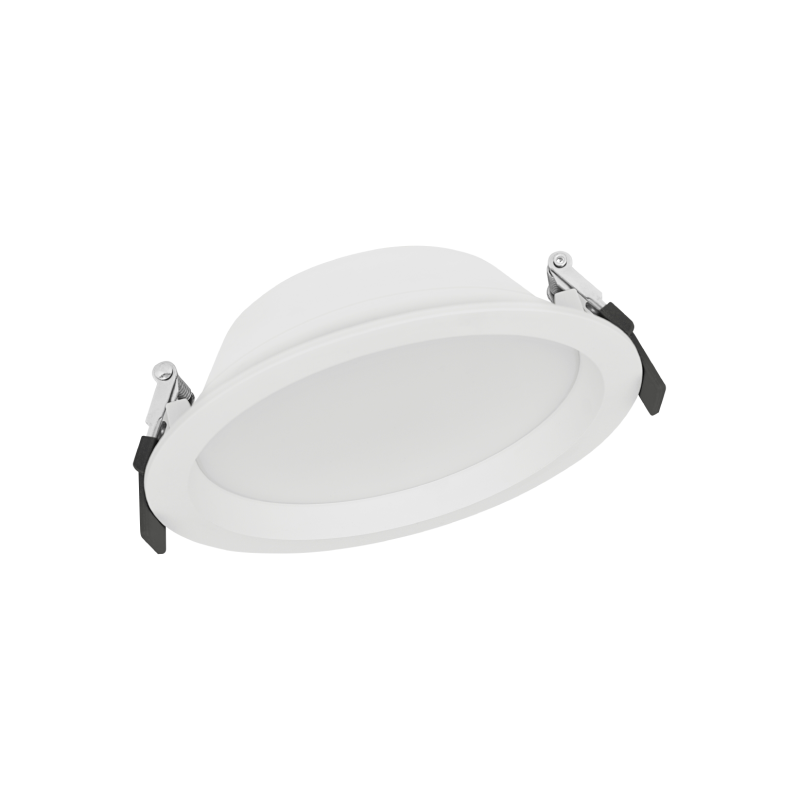

| Manufacturer | Ledvance |
| Reference | 091436 |
| EAN | 4058075091436 |
| Warranty | 5 years |
| Customs code | 94054239 |
| Product line | Value |
| Case color | White |
| Material of the glass | Plastic transparent |
| Material | Aluminum |
| Beam angle | Faisceau très extensif +80° |
| Color of light | White |
| Color rendering index (CRI) | 80 .. 89 |
| Class electric | II |
| Nominal voltage | 220...240 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for surface mounting | Yes |
| Suitable for flush mounting | Yes |
| Suitable for clamp mounting | No |
| Diameter | 160 mm |
| Embedding diameter | 150 mm |
| Height/depth | 52 mm |
| Installation height/depth | 100 mm |
| Width | 160 mm |
| Installation width | 150 mm |
| Length | 160 mm |
| Embedding length | 150 mm |
| Device | LED driver constant current |
| Exchangeable control unit | Yes |
| Equipment supplied | Yes |
| IFTTT compatible | Yes |
| Nominal current of the LED at constant current | 100 mA |
| Integrated diameter | 150 mm |
| Rated life L70/B10 at 25°C | 50000 h |
| Rated life L70/B50 at 25°C | 50000 h |
| Rated life L80/B10 at 25°C | 45000 h |
| Rated life L80/B50 at 25°C | 45000 h |
| Rated life L90/B10 at 25°C | 30000 h |
| Rated life L90/B50 at 25°C | 30000 h |
| Luminous efficacy of the lamp | 85 lm/W |
| Luminaire efficiency | 85 lm/W |
| Light distribution element | Diffuser |
| Light emission | Direct |
| Power factor (cos phi) | 0.9 |
| Luminous flux (Lumen) | 1190 lm |
| Effective luminous flux | 1190 lm |
| Photobiological risk group according to EN 62471 | GR0 |
| Protection class (IP) | IP44 |
| Protection class against impacts (IK) | IK02 |
| Wall mounting | No |
| Number of poles | 2 |
| Max. number of luminaires per circuit breaker B16 | 128 |
| Max. number of luminaires per circuit breaker C16 | 128 |
| Fire protection "D" | No |
| Accepted lamp power | 14 W |
| System power | 14 W |
| Regulability | Not adjustable |
| Light distribution | Symmetrical |
| Light source included | Yes |
| Brushed surface | No |
| Harmonic distortion rate | 20 |
| Nominal room temperature according to IEC 62722-2-1 | -20 .. +45 °C |
| Color temperature | 3000 K |
| Glow-wire test according to IEC 60695-2-11 | 650 °C - 30 s |
| Type | LED not interchangeable |
| Type of wiring | Termination |
| Type of connection | Automatic bollard |
| Type of connection | File terminal |
| Color uniformity (mcAdam ellipse) | SDCM6 |
| Possible IFTTT support | Yes |
