• -20%

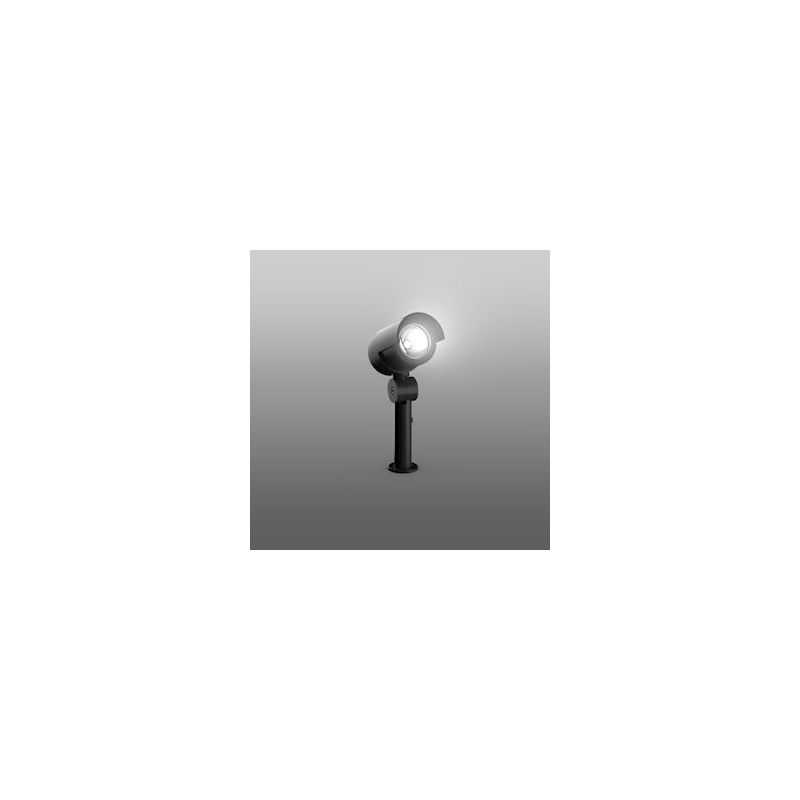

HB 207 10W 680lm 830 anthracite On/Off

721993.0031
4051859211594
Product line: Home 207, Protection class (IP): IP65, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€295.58
€236.47 Save 20%
Tax included Delivery within 24 working days in Europe - Price for 1u.
Quantity
On order / 24 days

100% secure payments
Close
Description

Product characteristics

HB 207 10W 680lm 830 anthracite On/Off
Color temperature
3000K
Beam angle
Extensive beam 40-80°
Luminous flux (Lumen)
680lm
Protection class (IP)
IP65
Class electric
Class I
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
22.000

main features

  • Product line: Home 207
  • Protection class (IP): IP65
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: RZB 721993.0031 / EAN: 4051859211594

High Quality Product

Thanks to its aluminium structure this Home 207 range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerRZB
Reference721993.0031
EAN4051859211594
Customs code94054239
Product lineHome 207
Design and finish
Case colorAnthracite
Material of the glassGlass transparent
MaterialAluminum
Light information
Beam angleFaisceau extensif 40-80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage220.000 .. 240.000 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Height/depth210.000 mm
Width90.000 mm
Length136.000 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceNo required
Exchangeable control unitNo
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classE
Start of phase breakNo
End of phase breakNo
Rated current42.000-45.000 mA
Nominal current of the LED at constant current42.000-45.000 mA
Rated life L70/B50 at 25°C40000.000 h
Luminous efficacy of the lamp68 lm/W
Luminaire efficiency68 lm/W
Light emissionDirect
Recessed in insulated ceiling, fire protection "F with roof".Yes
Glare assessment (UGR)22.000
Power factor (cos phi)0.990
Luminous flux (Lumen)680 lm
Effective luminous flux680 lm
Photobiological risk group according to EN 62471GR1
Protection class (IP)IP65
Protection class against impacts (IK)IK06
Wall mountingNo
Number of lamps/modules1.000
Number of poles3
Max. number of luminaires per circuit breaker B16160.000
Fire protection "D"No
Accepted lamp power10 W
System power10.000 W
RegulabilityNot adjustable
Light distributionSymmetrical
Wire surface1.500 mm²
Light source includedYes
Light source includedYes
Brushed surfaceNo
Nominal room temperature according to IEC 62722-2-1-20 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Color uniformity (mcAdam ellipse)SDCM3
Interface
Control via bluetoothNo
