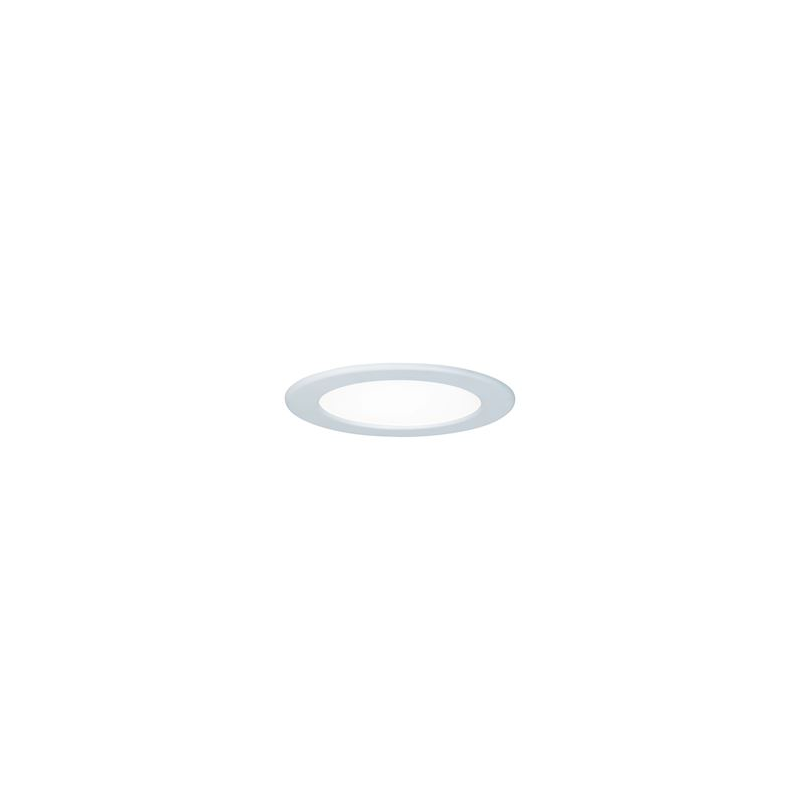

Quality line panel - Recessed KIT quality panel round LED 1x12W 4000K 230V 170mm white/plastic

92059
4000870920596
Product line: Quality line panel, Protection class (IP): IP44, Color temperature: 4000 K
€52.02
€42.14 Save 19%
Tax included Delivery within 14 working days in Europe - Price for 1u.
Quantity
On order / 14 days

100% secure payments
Close
Description

Product characteristics

Quality line panel - Recessed KIT quality panel round LED 1x12W 4000K 230V 170mm white/plastic
Color temperature
4000K
Beam angle
diffuse beam
Luminous flux (Lumen)
850lm
Protection class (IP)
IP44
Class electric
class II

main features

  • Product line: Quality line panel
  • Protection class (IP): IP44
  • Color temperature: 4000 K
  • reference: Paulmann 92059 / EAN: 4000870920596
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerPaulmann
Reference92059
EAN4000870920596
Customs code94051140
Product lineQuality line panel
Design and finish
Case colorWhite
Material of the glassOpaline plastic
Light information
Beam angleFaisceau diffus
Color of lightWhite
Electrical information
Class electricII
Nominal voltage230 .. 230 V
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Dimensions and weight
Diameter170 mm
Installation height/depth35 mm
Installation width150 mm
Length5 mm
Embedding length150 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceNo required
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy classE
Start of phase breakNo
End of phase breakNo
Rated current850 mA
Nominal current of the LED at constant current0850 mA
Integrated diameter150 mm
Rated life L70/B50 at 25°C30000 h
Rated life L80/B10 at 25°C30000 h
Luminaire efficiency70.83 lm/W
Power factor (cos phi)0.85
Luminous flux (Lumen)850 lm
Effective luminous flux850 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP44
Wall mountingNo
Number of lamps/modules1
Number of poles2
Fire protection "D"No
Accepted lamp power12 - 12 W
RegulabilityNot adjustable
Light distributionSymmetrical
Connectable conductor section1.5 mm²
Brushed surfaceNo
Nominal room temperature according to IEC 62722-2-125 °C
Color temperature4000 K
Type of wiringTermination
Type of connectionScrew terminal
Type of connectionScrew terminal

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationProduct sheet - Paulmann 92059
documentationInstructions - Paulmann 92059
