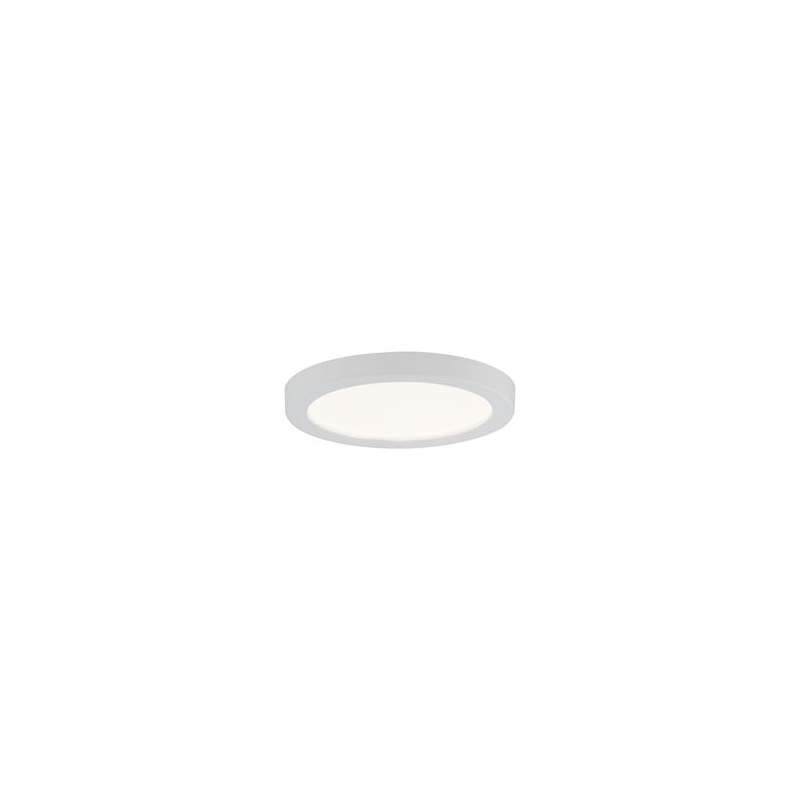

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..
| Manufacturer | Paulmann |
| Reference | 92945 |
| EAN | 4000870929452 |
| Customs code | 94054231 |
| Product line | Panel areo |
| Case color | White |
| Material of the glass | Opaline plastic |
| Material | Plastic |
| Color of light | White |
| Class electric | II |
| Nominal voltage | 230...230 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for flush mounting | Yes |
| Suitable for clamp mounting | No |
| Suitable for bar mounting | No |
| Suitable for bearing/floor mounting | No |
| Diameter | 80 mm |
| Embedding diameter | 75 mm |
| Height/depth | 10 mm |
| Installation height/depth | 35 mm |
| Installation width | 75 mm |
| Length | 10 mm |
| Embedding length | 75 mm |
| Suitable for pendant lights | No |
| Integrated emergency power supply | No |
| Device | No required |
| Exchangeable control unit | No |
| Equipment supplied | Yes |
| With sensor of light | No |
| Start of phase break | No |
| End of phase break | No |
| Rated current | 310 mA |
| Nominal current of the LED at constant current | 310 mA |
| Integrated diameter | 75 mm |
| Rated life L70/B50 at 25°C | 30000 h |
| Rated life L80/B10 at 25°C | 30000 h |
| Luminaire efficiency | 62 lm/W |
| Light emission | Direct |
| Luminous flux (Lumen) | 310 lm |
| Effective luminous flux | 310 lm |
| Photobiological risk group according to EN 62471 | GR0 |
| Protection class (IP) | IP23 |
| Wall mounting | No |
| Number of lamps/modules | 1 |
| Number of poles | 2 |
| Fire protection "D" | No |
| Accepted lamp power | 5 .. 5 W |
| System power | 5 W |
| Regulability | Not adjustable |
| Light distribution | Symmetrical |
| Connectable conductor section | 1.5 mm² |
| Light source included | Yes |
| Brushed surface | No |
| Nominal room temperature according to IEC 62722-2-1 | 25 .. 25 °C |
| Color temperature | 3000 K |
| Type | LED not interchangeable |
| Type of wiring | Through-wiring included |
| Type of connection | Screw terminal |
| Type of connection | Screw terminal |
| Control via bluetooth | No |
