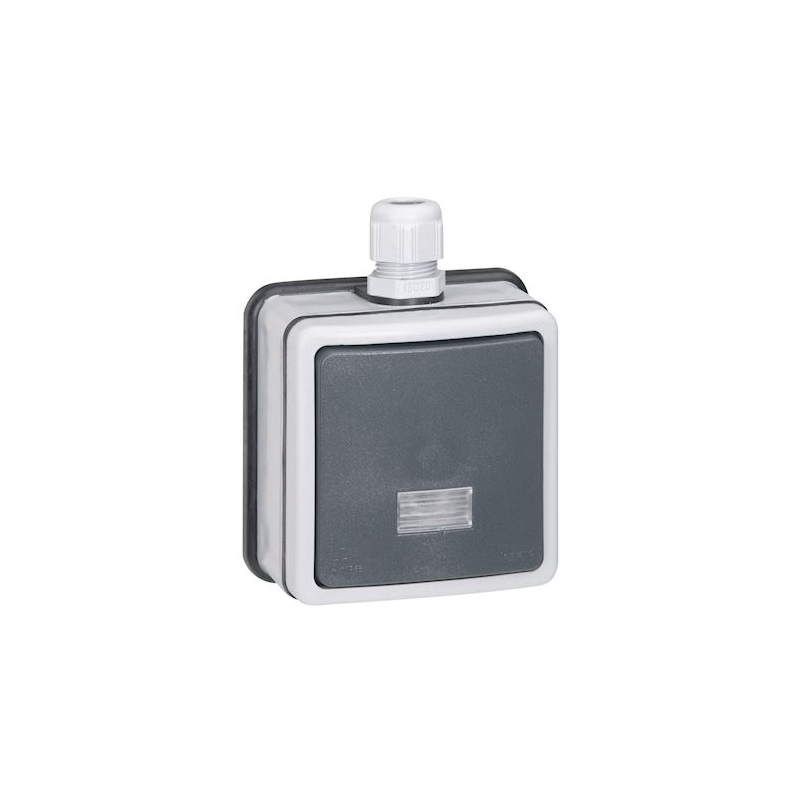

| Manufacturer | Legrand |
| Reference | 090462 |
| EAN | 3245060904623 |
| Customs code | 85365080 |
| Product line | Plexo |
| Color | Grey |
| Surface finish | Matt |
| Material | Plastic |
| Nominal voltage | 250 V |
| Unit height | 117 mm |
| Device width | 98 mm |
| Device depth | 63 mm |
| Min. depth of the flush-mounted box | 40 mm |
| With lighting | Yes |
| With indicator light indicator | Yes |
| Calibre | 6 A |
| Contact | 1 contact with closure, 1 contact to opening |
| Protection class against impacts (IK) | IK08 |
| Model type | Push button unique |
| Number of actuating rockers | 1 |
| Nombre of contacts en tant que contacts to fermeture number of contacts as make contacts | 1 |
| Nombre of contacts en tant que contacts to ouverture number of contacts as NC contacts | 1 |
| Number of contacts as changeover switches | 0 |
| Number of modules (modular construction) | 2 |
| Number of poles | 2 |
| RAL number | 7016 |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Untreated |
| Type of connection | Screw terminal |
| Type of mounting | Screw mounting |
| Type of installation | Surface-mounted |
| Type of connection | Screw terminal |
