Wall light to LED - KATONA - Kat Sq 2000-840 HF

96629370
9008709994836
Product line: Katona, Protection class (IP): IP65, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€204.64
€163.71 Save 20%
Tax included Delivery within 24 working days in Europe - Price for 1u.
Quantity
On order / 24 days

100% secure payments
Close
Description

Wall light to LED - KATONA - Kat Sq 2000-840 HF - 96629370

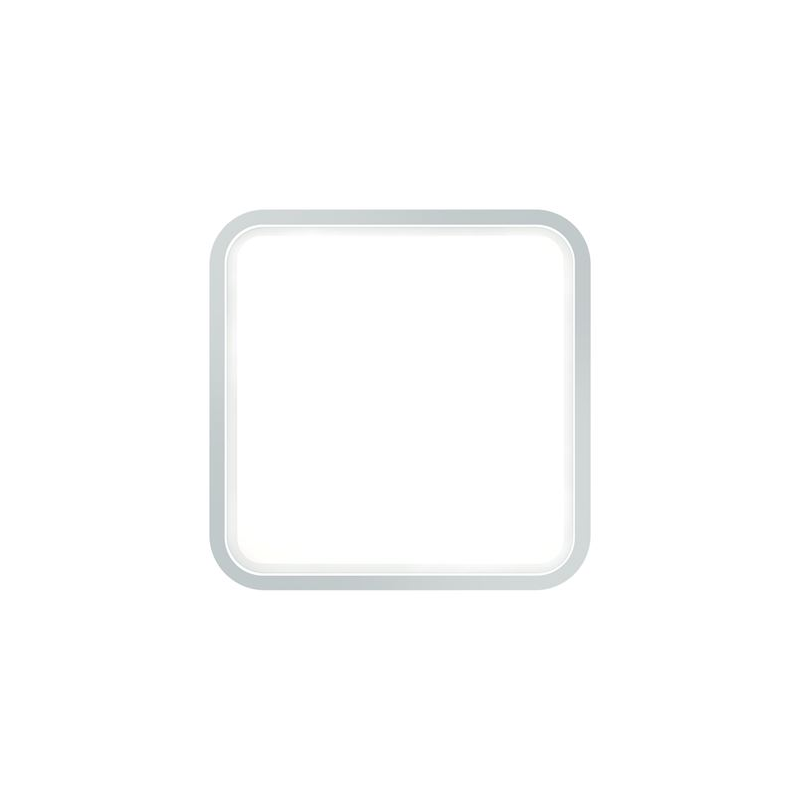

Wall light to LED - KATONA - Kat Sq 2000-840 HF
Color temperature
4000K
Protection class (IP)
IP65
Class electric
class II
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
23

main features - Thorn 96629370

  • Product line: Katona
  • Protection class (IP): IP65
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Thorn 96629370 / EAN: 9008709994836
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerThorn
Reference96629370
EAN9008709994836
Customs code94051190
Product lineKatona
Design and finish
Case colorWhite
MaterialPlastic
Light information
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth58 mm
Width277 mm
Length277 mm
Technical specifications
Suitable for pendant lightsNo
DeviceLED driver constant current
Exchangeable control unitYes
Equipment suppliedYes
Energy efficiency class of the supplied lampA++, A+, A (LED)
Start of phase breakNo
End of phase breakNo
Life span50000 h
Rated life L70/B50 at 25°C74000 h
Rated life L80/B50 at 25°C50000 h
Rated life L90/B50 at 25°C24000 h
Light emissionDirect
Glare assessment (UGR)23
Power factor (cos phi)0.91
Effective luminous flux1950 lm
Protection class (IP)IP65
Protection class against impacts (IK)IK10
Number of lamps/modules1
Max. number of luminaires per circuit breaker B1680
Max. number of luminaires per circuit breaker C16100
Fire protection "D"Yes
Accepted lamp power16.3 W
System power16.3 W
Light distributionSymmetrical
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-15 .. 35 °C
Color temperature4000 K
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeLED not interchangeable
Type of wiringThrough-wiring included
Color uniformity (mcAdam ellipse)SDCM3
