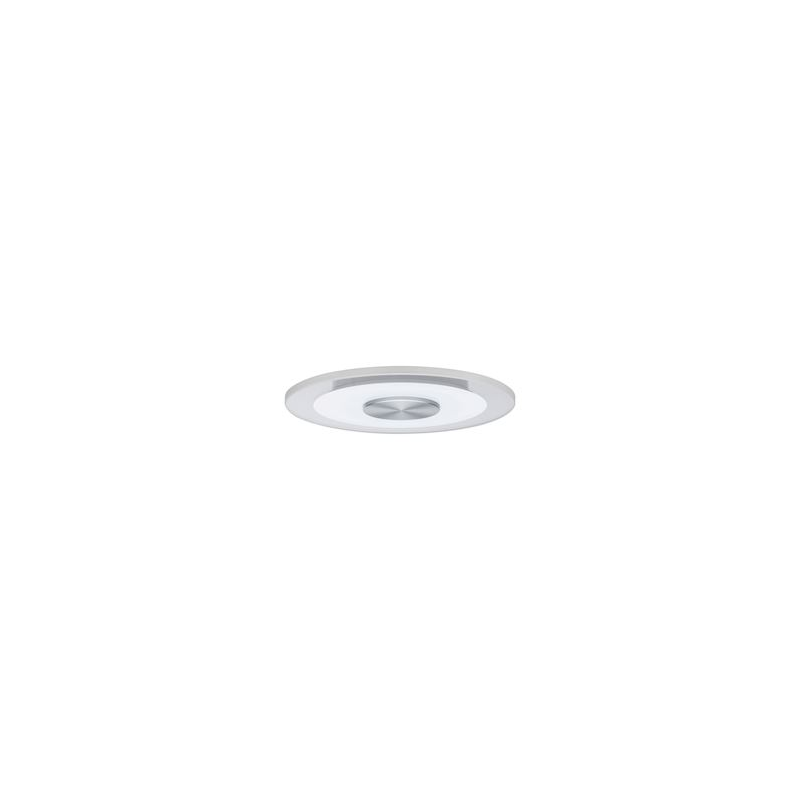

| Manufacturer | Paulmann |
| Reference | 92543 |
| EAN | 4000870925430 |
| Customs code | 94054239 |
| Product line | Whirl |
| Case color | Aluminum |
| Beam angle | Faisceau très extensif +80° |
| Color of light | White |
| Class electric | II |
| Nominal voltage | 230...230 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for flush mounting | Yes |
| Suitable for clamp mounting | No |
| Suitable for bar mounting | No |
| Suitable for bearing/floor mounting | No |
| Diameter | 150 mm |
| Height/depth | 10 mm |
| Installation height/depth | 40 mm |
| Installation width | 100 mm |
| Length | 10 mm |
| Embedding length | 100 mm |
| Suitable for pendant lights | No |
| Integrated emergency power supply | No |
| Device | No required |
| Exchangeable control unit | Yes |
| Equipment supplied | Yes |
| With sensor of light | No |
| Energy class | F |
| Start of phase break | No |
| End of phase break | No |
| Rated current | 450 mA |
| Nominal current of the LED at constant current | 450 mA |
| Integrated diameter | 100 mm |
| Rated life L70/B50 at 25°C | 30000 h |
| Rated life L80/B10 at 25°C | 30000 h |
| Luminaire efficiency | 18.75 lm/W |
| Light emission | Direct |
| Luminous flux (Lumen) | 450 lm |
| Effective luminous flux | 450 lm |
| Photobiological risk group according to EN 62471 | GR0 |
| Protection class (IP) | IP23 |
| Wall mounting | No |
| Number of lamps/modules | 3 |
| Number of poles | 2 |
| Fire protection "D" | No |
| Accepted lamp power | 6.9 W |
| System power | 24 W |
| Regulability | Not adjustable |
| Light distribution | Symmetrical |
| Connectable conductor section | 1.5 mm² |
| Light source included | Yes |
| Brushed surface | No |
| Nominal room temperature according to IEC 62722-2-1 | 25 .. 25 °C |
| Color temperature | 3000 K |
| Type | LED not interchangeable |
| Type of wiring | Termination |
| Type of connection | Screw terminal |
| Type of connection | Screw terminal |
