• -20%

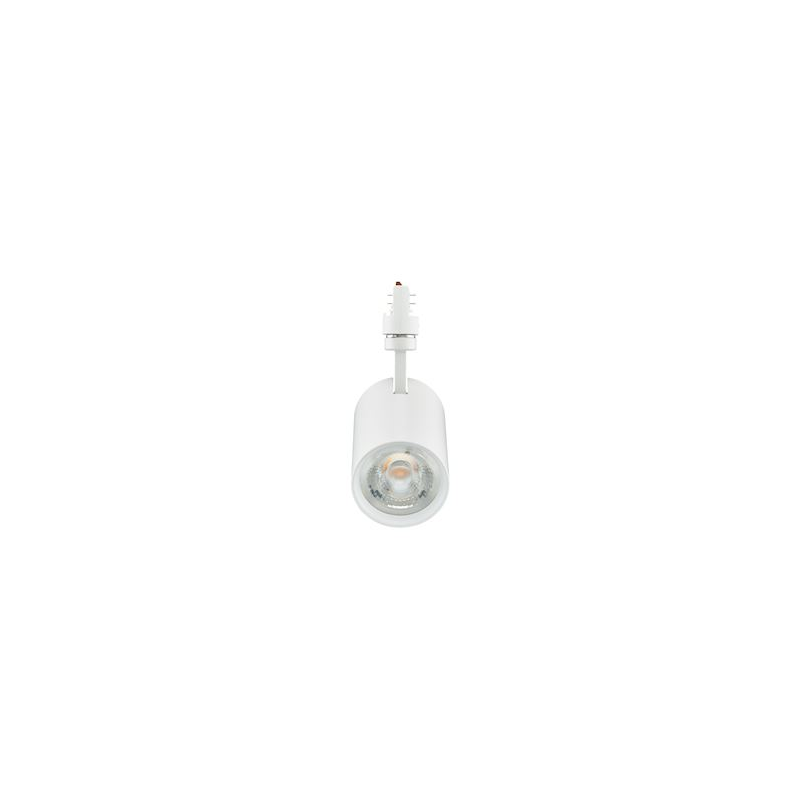

CoreLine projector LED white ST151T gen2 930 On/Off 38D 27W 3000lm 50000h L70

528611
8719514528611
Product line: Coreline, Protection class (IP): IP20, Color rendering index (CRI): 90 .. 100, Color temperature: 3000 K
€165.58
€132.46 Save 20%
Tax included Stock: 226 (+ on order) - Delivery within 9 working days in Europe - Price for 1u.
Quantity
In stock (226 u)

100% secure payments
Close
Description

CoreLine projector LED white ST151T gen2 930 On/Off 38D 27W 3000lm 50000h L70 - 528611

CoreLine projector LED white ST151T gen2 930 On/Off 38D 27W 3000lm 50000h L70
Color temperature
3000K
Beam angle
medium beam 20-40°
Luminous flux (Lumen)
3000lm
Protection class (IP)
IP20
Class electric
class I
Color rendering index (CRI)
90 .. 100
Glare assessment (UGR)
19.0

main features - Philips 528611

  • Product line: Coreline
  • Protection class (IP): IP20
  • Color rendering index (CRI): 90 .. 100
  • Color temperature: 3000 K
  • reference: Philips 528611 / EAN: 8719514528611

High Quality Product

Thanks to its aluminium structure this Coreline range luminaire offers you rock-solid strength and guaranteed longevity.
Philips
Philips

Find all the products of the brand Philips at the best price on the store domeashop.com.

See all products Philips
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerPhilips
Reference528611
EAN8719514528611
Customs code94051190
Product lineCoreline
Design and finish
Case colorWhite
Material of the glassStructured plastic
MaterialAluminum
Light information
Beam angleFaisceau moyen 20-40°
Color of lightWhite
Color rendering index (CRI)90 .. 100
Electrical information
Class electricI
Nominal voltage220.0...240.0 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for bar mountingYes
Suitable for bearing/floor mountingNo
Suitable for rail mountingYes
Suitable for crossbar mountingNo
Dimensions and weight
Diameter80.0 mm
Height/depth125.0 mm
Width87.0 mm
Length207.0 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy classE
Start of phase breakNo
End of phase breakNo
Rated current750.0 mA
Nominal current of the LED at constant current750 mA
Rated life L70/B50 at 25°C50000.0 h
Luminaire efficiency100 lm/W
Light distribution elementFocus lens
Light emissionDirect
Glare assessment (UGR)19.0
Power factor (cos phi)0.9
Luminous flux (Lumen)3000.0 lm
Effective luminous flux3000 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP20
Protection class against impacts (IK)IK03
Intensity2301.7 cd
Wall mountingNo
Number of lamps/modules1.0
Number of poles3
Max. number of luminaires per circuit breaker B1630.0
Max. number of luminaires per circuit breaker C1650.0
Fire protection "D"No
Accepted lamp power30.0 W
System power30.0 W
RegulabilityRotatable and steerable
Light distributionSymmetrical
Wire surface2.5 mm²
Light source includedYes
Light source includedYes
Brushed surfaceNo
Harmonic distortion rate20
Nominal room temperature according to IEC 62722-2-125.0 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Type of connectionAdapter for rails
Type of connectionAdapter for rails
Color uniformity (mcAdam ellipse)SDCM4
Interface
Control via bluetoothNo
