| Manufacturer | Schneider Electric |
| Reference | S530523 |
| EAN | 3606489610883 |
| Customs code | 85365080 |
| Product line | Odace |
| Color | Aluminum |
| Surface finish | Glossy |
| Material | Plastic |
| Nominal voltage | 230,0 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | No |
| Embedding diameter | 55.0 mm |
| Height | 71.0 mm |
| Width | 71.0 mm |
| Installation width | 55.0 mm |
| Embedding length | 55.0 mm |
| Depth | 45.0 mm |
| Embedding depth | 27.0 mm |
| Min. depth of the flush-mounted box | 46.0 mm |
| Angle de détection horizontal | 160,0 ° |
| Forced stop | Yes |
| Self-learning brightness function | No |
| Current of start max. | 10.0 A |
| Running time min. | 1.0 s |
| Frequency | 50,0 Hz |
| Optimum mounting height | 1.0 m |
| Protection class (IP) | IP21 |
| Protection class against impacts (IK) | IK04 |
| Max. span width | 6.0 m |
| Adjustable trigger brightness | Yes |
| Forced operation | Yes |

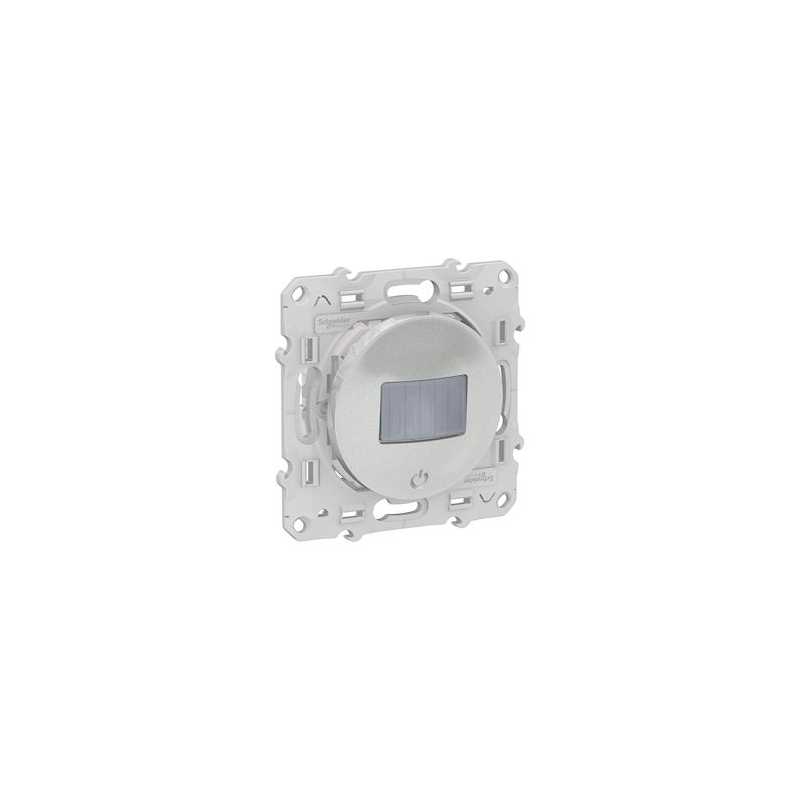

| Model type | Motion sensor |
| Wall mounting | Yes |
| Max. detection range at H 2.5 | 8.0 m |
| Max. switching capacity | 2200.0 W |
| Material quality | Thermoplastic |
| Temperature | 5,0 .. 35,0 °C |
| Surface treatment | Lacquered / painted |
| Type of sensor | Infrared |
| Type of connection | Screw terminal |
| Type of installation | Built-in |
| Type of connection | Screw terminal |
Reference: S520523
Odace - presence detector and of movement - white - all charges - 3 wire
Reference: S540523
Odace - presence detector and of movement anthracite - all charges - 3 wire
Reference: S550523
Odace - presence detector and of movement - cobalt - all charges - 3 wire
