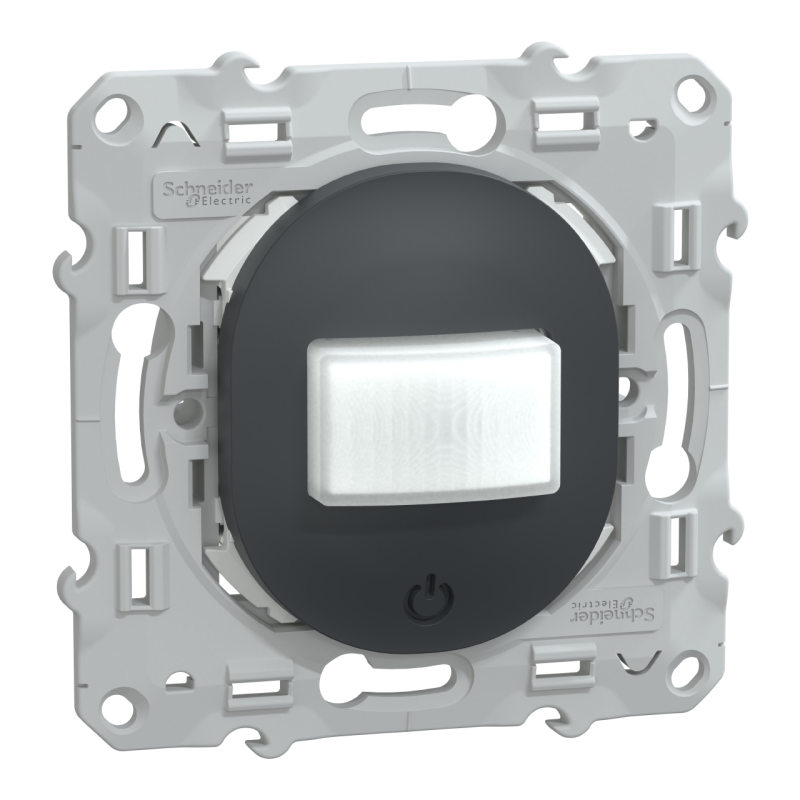

| Manufacturer | Schneider Electric |
| Reference | S340523 |
| EAN | 3606482163263 |
| Customs code | 85365080 |
| Product line | Ovalis |
| Color | Anthracite |
| Surface finish | Matt |
| Material | Plastic |
| Nominal voltage | 230...230 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | No |
| Embedding diameter | 55 mm |
| Height | 71 mm |
| Width | 71 mm |
| Installation width | 55 mm |
| Embedding length | 55 mm |
| Depth | 45 mm |
| Embedding depth | 27 mm |
| Min. depth of the flush-mounted box | 46 mm |
| Angle de détection horizontal | 160 ° |
| Forced stop | Yes |
| Self-learning brightness function | No |
| Control auxiliary possible | Yes |
| Current of start max. | 10 A |
| Running time min. | 1 s |
| Frequency | 50 Hz |
| Optimum mounting height | 1 m |
| Protection class (IP) | IP21 |
| Protection class against impacts (IK) | IK04 |
| Max. span width | 6 m |
| Adjustable trigger brightness | Yes |
| Forced operation | Yes |
| Model type | Motion sensor |
| Wall mounting | Yes |
| RAL number | 7021 |
| Max. detection range at H 2.5 | 8 m |
| Max. switching capacity | 2200 W |
| Material quality | Thermoplastic |
| Temperature | 5 .. 35 °C |
| Surface treatment | Lacquered / painted |
| Type of sensor | Infrared |
| Type of connection | Screw terminal |
| Type of installation | Built-in |
| Type of connection | Screw terminal |
