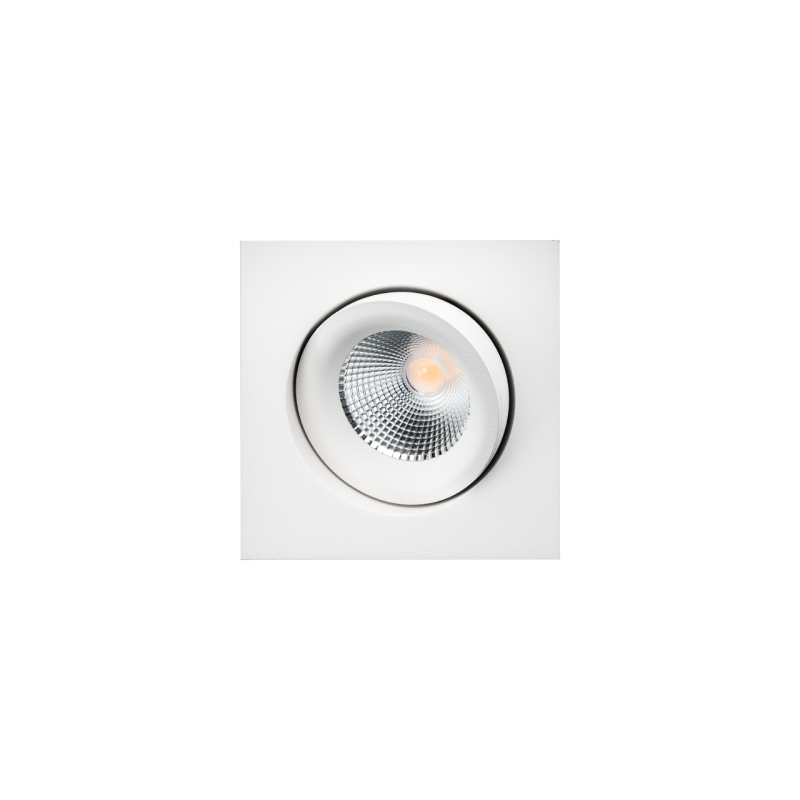

| Manufacturer | SG Lighting |
| Reference | 902582 |
| EAN | 7021989025825 |
| Warranty | 5 years |
| Customs code | 94051190 |
| Product line | Junistar |
| Color | White |
| Case color | White |
| Material of the glass | Glass transparent |
| Material | Aluminum |
| Beam angle | Faisceau extensif 40-80° |
| Color of light | White |
| Color rendering index (CRI) | 90 .. 100 |
| Class electric | II |
| Nominal voltage | 220...240 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | No |
| Suitable for surface mounting | No |
| Suitable for flush mounting | Yes |
| Suitable for clamp mounting | No |
| Suitable for bar mounting | No |
| Suitable for bearing/floor mounting | No |
| Suitable for crossbar mounting | No |
| Height | 50 mm |
| Height/depth | 50 mm |
| Installation height/depth | 48 mm |
| Width | 95 mm |
| Length | 95 mm |
| Embedding length | 163 mm |
| Suitable for pendant lights | No |
| Integrated emergency power supply | No |
| Bulb(s) included(s) | Yes |
| Device | LED driver constant current |
| Equipment supplied | Yes |
| With sensor of light | No |
| Energy efficiency class of the supplied exchangeable lamp | A++ |
| Energy efficiency class of the supplied lamp | A++, A+, A (LED) |
| Start of phase break | No |
| End of phase break | No |
| Nominal current of the LED at constant current | 0 mA |
| Dimensions | 95 x 95 x 50 mm ( L x L x H ) |
| Luminaire efficiency | 70 lm/W |
| Light emission | Direct |
| Power factor (cos phi) | 0.9 |
| Luminous flux (Lumen) | 999 lm |
| Effective luminous flux | 560 lm |
| Photobiological risk group according to EN 62471 | GR1 |
| Protection class (IP) | IP44 |
| Assembly | Built-in |
| Wall mounting | No |
| Number of lamps/modules | 1 |
| Number of poles | 2 |
| Part | Bathroom |
| Fire protection "D" | No |
| Accepted lamp power | 7 .. 7 W |
| System power | 8 W |
| Reflector | Ultra glossy |
| Regulability | Orientable |
| Light distribution | Symmetrical |
| Wire surface | 1 mm² |
| Connectable conductor section | 2.5 mm² |
| Light source included | Yes |
| Brushed surface | No |
| Nominal room temperature according to IEC 62722-2-1 | -40 .. 105 °C |
| Color temperature | 3000 K |
| Type | LED not interchangeable |
| Type of wiring | Suitable for through-wiring |
| Color uniformity (mcAdam ellipse) | SDCM1 |
| Control via bluetooth | No |
