SOFT Square downlight square interior white 910lm 3000K Ra 98 phase break

Reference 903261

EAN 7021989032618

Brand SG Lighting

Product line: Soft, Protection class (IP): IP43, Color rendering index (CRI): 90 .. 100, Color temperature: 3000 K

€215.54

€172.44 Save 20%

Tax included Stock: 7 (+ on order) - Delivery within 10 working days in Europe - Price for 1u.

Quantity

In stock (7 u)

100% secure payments

Description

Description

Product characteristics

SOFT Square downlight square interior white 910lm 3000K Ra 98 phase break

Strong points

Protection class (IP): IP43

Protection class against impacts (IK): IK10

Main features

Product line: Soft
Protection class (IP): IP43
Color rendering index (CRI): 90 .. 100
Color temperature: 3000 K
Reference: SG Lighting 903261 / EAN: 7021989032618

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	SG Lighting
Reference	903261
EAN	7021989032618
Customs code	94051190
Product line	Soft

Design and finish

Case color	White
Material of the glass	Glass transparent
Material	Aluminum

Technical specifications

Suitable for ceiling mounting	Yes
Suitable for surface mounting	No
Suitable for flush mounting	Yes
Suitable for clamp mounting	No
Suitable for bar mounting	No
Suitable for bearing/floor mounting	No
Suitable for crossbar mounting	No
Suitable for pendant lights	No
Beam angle	Extensive beam 40-80°
Device	LED driver constant current
Equipment supplied	Yes
With sensor of light	No
Energy efficiency class of the supplied exchangeable lamp	A
Energy efficiency class of the supplied lamp	A++, A+, A (LED)
Class electric	II
Color of light	White
Start of phase break	No
End of phase break	Yes
Nominal current of the LED at constant current	300...0 mA
Rated life L80/B10 at 25°C	100000 h
Luminaire efficiency	76 lm/W
Light emission	Direct
Glare assessment (UGR)	18.6
Luminous flux (Lumen)	910 lm
Effective luminous flux	910 lm

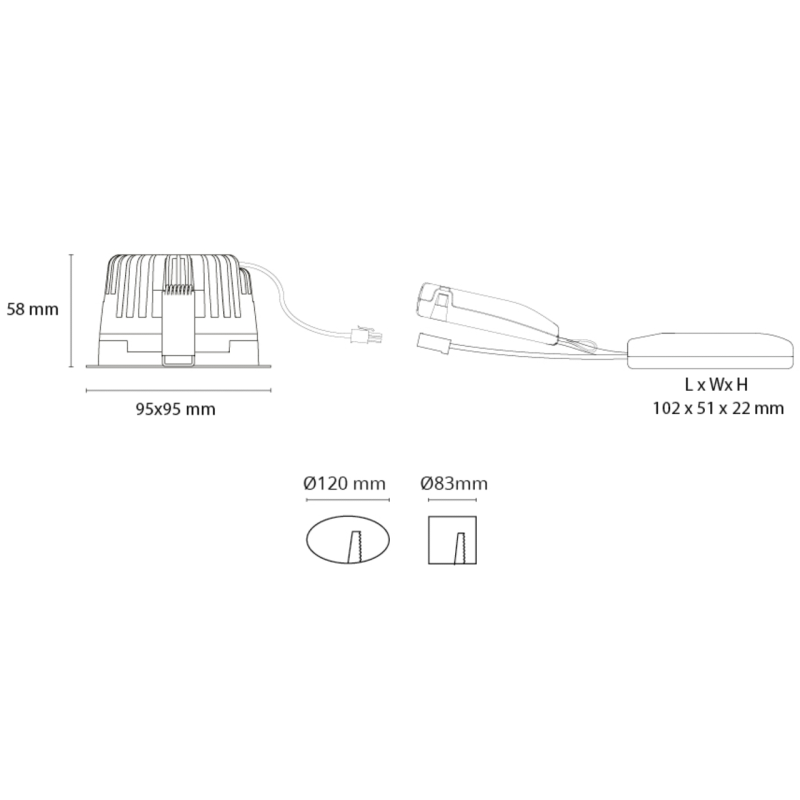

Installation height/depth	57 mm
Protection class (IP)	IP43
Protection class against impacts (IK)	IK10
Color rendering index (CRI)	90 .. 100
Number of lamps/modules	1
Number of poles	3
Max. number of luminaires per circuit breaker B16	69
Max. number of luminaires per circuit breaker C16	69
Fire protection "D"	No
Accepted lamp power	12 W
System power	12 W
Reflector	Ultra glossy
Regulability	Not adjustable
Light distribution	Symmetrical
Wire surface	1 mm²
Connectable conductor section	2.5...0.5 mm²
Light source included	Yes
Brushed surface	No
Nominal room temperature according to IEC 62722-2-1	25 °C
Color temperature	3000 K
Nominal voltage	240...220 V
Surface treatment	Powder coated
Type	LED not interchangeable
Type of wiring	Suitable for through-wiring
Type of connection	File terminal
Type of voltage	AC
Color uniformity (mcAdam ellipse)	SDCM1
