Protection class (IP): IP54
You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .
Delivery times and stocks are indicated on each product sheet and are updated very regularly.
We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

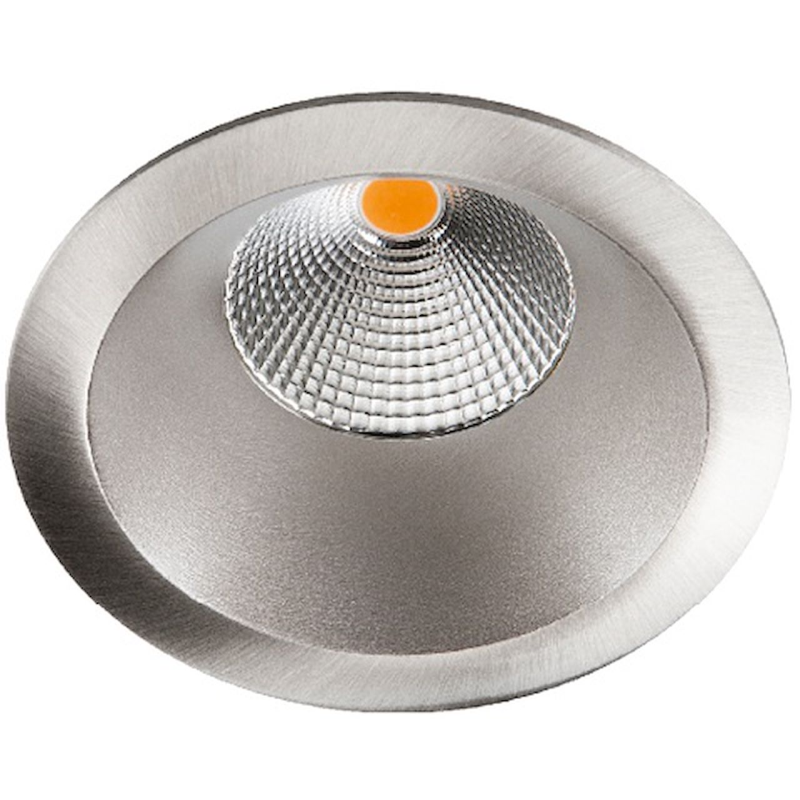

| Manufacturer | SG Lighting |
| Reference | 903312 |
| EAN | 7021989033127 |
| Customs code | 94051190 |
| Product line | Junistar |
| Material of the glass | Glass transparent |
| Material | Aluminum |
| Beam angle | Faisceau extensif 40-80° |
| Color of light | White |
| Color rendering index (CRI) | 90 .. 100 |
| Class electric | II |
| Nominal voltage | 220...240 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | No |
| Suitable for flush mounting | No |
| Suitable for clamp mounting | No |
| Diameter | 94 mm |
| Height/depth | 53 mm |
| Installation height/depth | 53 mm |
| Width | 94 mm |
| Installation width | 94 mm |
| Length | 94 mm |
| Embedding length | 94 mm |
| Device | LED driver constant current |
| Light emission | Direct |
| Power factor (cos phi) | 0.9 |
| Luminous flux (Lumen) | 700 lm |
| Effective luminous flux | 830 lm |
| Photobiological risk group according to EN 62471 | GR1 |
| Protection class (IP) | IP54 |
| Wall mounting | No |
| Number of lamps/modules | 1 |
| Number of poles | 2 |
| Accepted lamp power | 9 .. 9 W |
| System power | 9 W |
| Reflector | Ultra glossy |
| Regulability | Not adjustable |
| Light distribution | Symmetrical |
| Wire surface | 1 mm² |
| Connectable conductor section | 2.5 mm² |
| Brushed surface | No |
| Nominal room temperature according to IEC 62722-2-1 | 25 .. 25 °C |
| Color temperature | 3000 K |
| Type | LED not interchangeable |
| Type of wiring | Suitable for through-wiring |
| Color uniformity (mcAdam ellipse) | SDCM2 |
