-19%

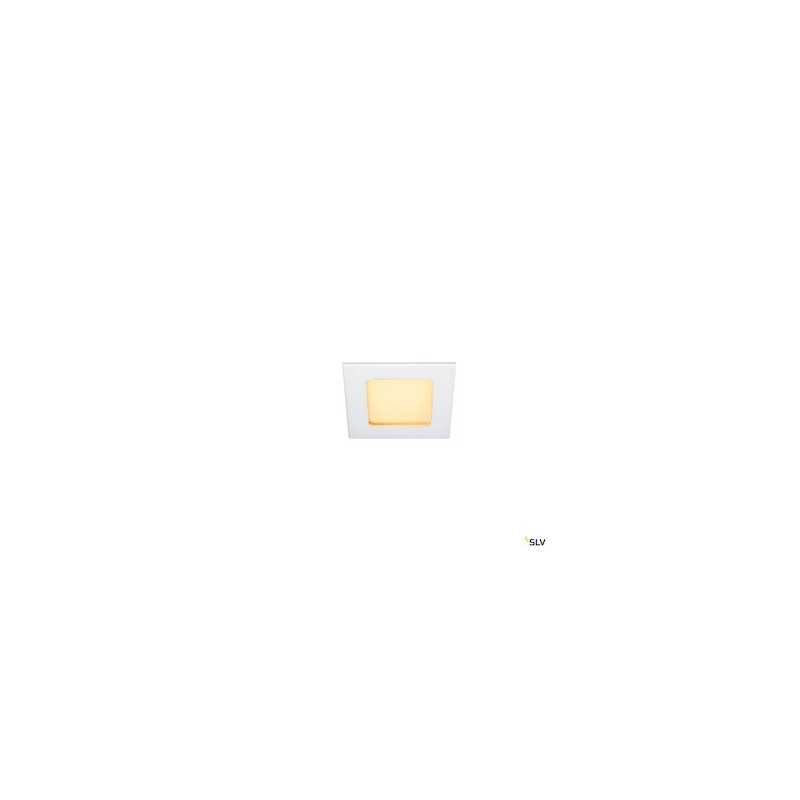

Frame Basic set built-in white 9,4W 3000K power supply included

Reference 112721

EAN 4024163158145

Brand SLV

Color: Matt white, Variable lighting (dimmable): No, Product line: Frame, Protection class (IP): IP20, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K

€102.68

€83.17 Save 19%

Tax included Delivery within 16 working days in Europe - Price for 1u.

Quantity

On order / 16 days

100% secure payments

Description

Description

Frame Basic set built-in white 9,4W 3000K power supply included - 112721

Frame Basic set built-in white 9,4W 3000K power supply included

interior

3000K

very extensive beam +80°

600lm

IP20

class II

80 .. 89

main features - SLV 112721

Variable lighting (dimmable): No
Product line: Frame
Protection class (IP): IP20
Color rendering index (CRI): 80 .. 89
Color temperature: 3000 K
reference: SLV 112721 / EAN: 4024163158145

High Quality Product

By offering an extended warranty to 5 years, SLV ensures a high level of quality of this product that will give you satisfaction for many years. Thanks to its aluminium structure this Frame range luminaire offers you rock-solid strength and guaranteed longevity.

Installation instructions SLV - 112721

In accordance with the manufacturer's specifications, this product should be used indoors only, protected from the elements and away from water sources (sinks, baths, showers, etc.).

SLV

Find all the products of the brand SLV at the best price on the store domeashop.com.

See all products SLV

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	SLV
Reference	112721
EAN	4024163158145
Warranty	5 years
Customs code	94051190
Product line	Frame

Design and finish

Color	Matt white
Case color	White
Material of the glass	Plastic matte/satin
Material	Aluminum

Light information

Beam angle	Faisceau très extensif +80°
Color of light	White
Variable lighting (dimmable)	No
Color rendering index (CRI)	80 .. 89

Electrical information

Class electric	II
Nominal voltage	220...240 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Suitable for surface mounting	No
Suitable for flush mounting	Yes
Suitable for clamp mounting	Yes
Suitable for bar mounting	No
Suitable for bearing/floor mounting	No
Suitable for crossbar mounting	No
Outdoor use	No

Dimensions and weight

Height	40 mm
Height/depth	40 mm
Installation height/depth	50 mm
Width	90 mm
Installation width	75 mm
Length	90 mm
Embedding length	75 mm

Technical specifications

Suitable for pendant lights	No
Integrated emergency power supply	No
Bulb(s) included(s)	Yes
Device	LED driver constant current
Exchangeable control unit	No
Equipment supplied	Yes
With sensor of light	No
Energy efficiency class of the supplied lamp	A++, A+, A (LED)
Energy class	E
Start of phase break	No
End of phase break	No
Rated current	350 mA
Nominal current of the LED at constant current	350...350 mA
Dimensions	90 x 90 x 40 mm ( L x L x H )
Rated life L70/B50 at 25°C	50000 h
Luminaire efficiency	1 lm/W
Light emission	Direct
Recessed in insulated ceiling, fire protection "F with roof".	No
Luminous flux (Lumen)	600 lm
Effective luminous flux	600 lm
Protection class (IP)	IP20
Lumen by watt	72 lm/W
Assembly	Built-in
Wall mounting	Yes
Number of lamps/modules	1
Fire protection "D"	No
Accepted lamp power	8.300000000000001 .. 8.300000000000001 W
System power	8.3 W
Regulability	Not adjustable
Constant luminous flux control	No
Light distribution	Symmetrical
Connectable conductor section	2.5 mm²
Light source included	Yes
Light source included	Yes
Brushed surface	No
Nominal room temperature according to IEC 62722-2-1	-20 .. 50 °C
Color temperature	3000 K
Surface treatment	Lacquered / painted
Type	LED not interchangeable
Type of wiring	Termination
Glass	Clear

Interface

Control via bluetooth	No

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.

Product sheet - SLV 112721

Instructions - SLV 112721
