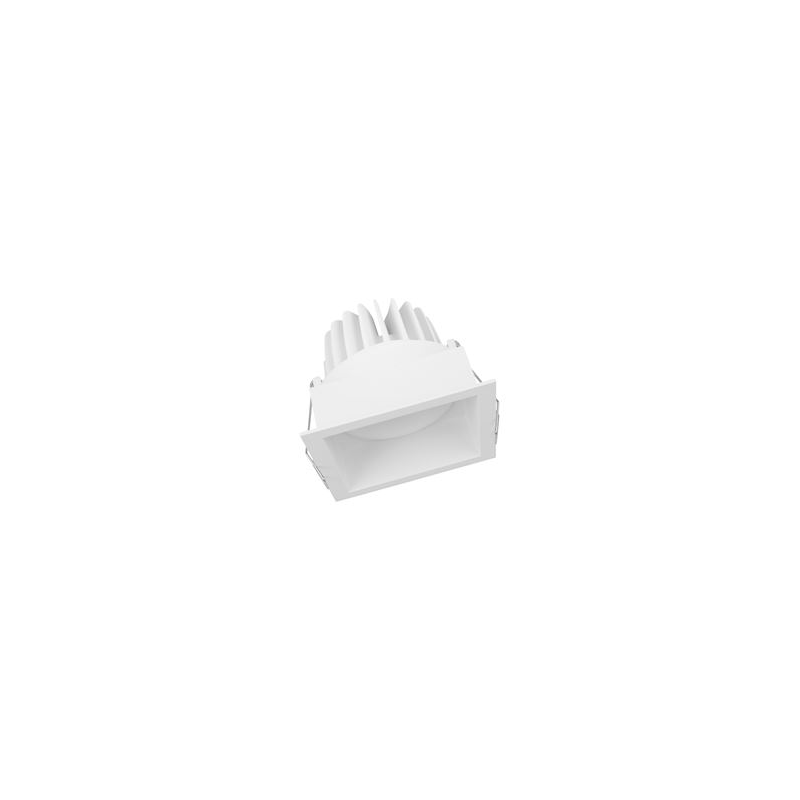

Spot light square DK orientable 8W/3000K 650lm 36° IP20 UGR19 white

114043
4058075114043
Product line: Performance, Protection class (IP): IP20, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€72.28
€57.82 Save 20%
Tax included Delivery within 14 working days in Europe - Price for 1u.
Quantity
On order / 14 days

100% secure payments
Close
Description

Spot light square DK orientable 8W/3000K 650lm 36° IP20 UGR19 white - 114043

Spot light square DK orientable 8W/3000K 650lm 36° IP20 UGR19 white
Color temperature
3000K
Beam angle
medium beam 20-40°
Luminous flux (Lumen)
650-650lm
Protection class (IP)
IP20
Class electric
class II
Color rendering index (CRI)
80 .. 89

main features - Ledvance 114043

  • Product line: Performance
  • Protection class (IP): IP20
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: Ledvance 114043 / EAN: 4058075114043

High Quality Product

By offering an extended warranty to 5 years, Ledvance ensures a high level of quality of this product that will give you satisfaction for many years. Thanks to its aluminium structure this Performance range luminaire offers you rock-solid strength and guaranteed longevity.
Ledvance
Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerLedvance
Reference114043
EAN4058075114043
Warranty5 years
Customs code94051190
Product linePerformance
Design and finish
Case colorWhite
Material of the glassPlastic transparent
MaterialAluminum
Light information
Beam angleFaisceau moyen 20-40°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220 .. 240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for surface mountingYes
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Height/depth72 mm
Installation height/depth90 mm
Width90 mm
Installation width83 mm
Length90 mm
Embedding length83 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitYes
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
IFTTT compatibleYes
Start of phase breakNo
End of phase breakNo
Rated current65-65 mA
Nominal current of the LED at constant current65 mA
Rated life L70/B10 at 25°C50000 h
Rated life L70/B50 at 25°C50000 h
Rated life L80/B10 at 25°C45000 h
Rated life L80/B50 at 25°C45000 h
Rated life L90/B10 at 25°C30000 h
Rated life L90/B50 at 25°C30000 h
Luminous efficacy of the lamp90 lm/W
Luminaire efficiency90 lm/W
Light distribution elementFocus lens
Light emissionDirect
Power factor (cos phi)0.5
Luminous flux (Lumen)650-650 lm
Effective luminous flux650 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP20
Protection class against impacts (IK)IK03
Wall mountingNo
Number of poles2
Max. number of luminaires per circuit breaker B1632
Max. number of luminaires per circuit breaker C1641
Fire protection "D"No
System power8 W
RegulabilityOrientable
Light distributionSymmetrical
Light source includedYes
Light source includedYes
Brushed surfaceNo
Harmonic distortion rate15
Nominal room temperature according to IEC 62722-2-1-10-+40 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Color uniformity (mcAdam ellipse)SDCM4
Interface
Control via bluetoothNo
Possible IFTTT supportYes
