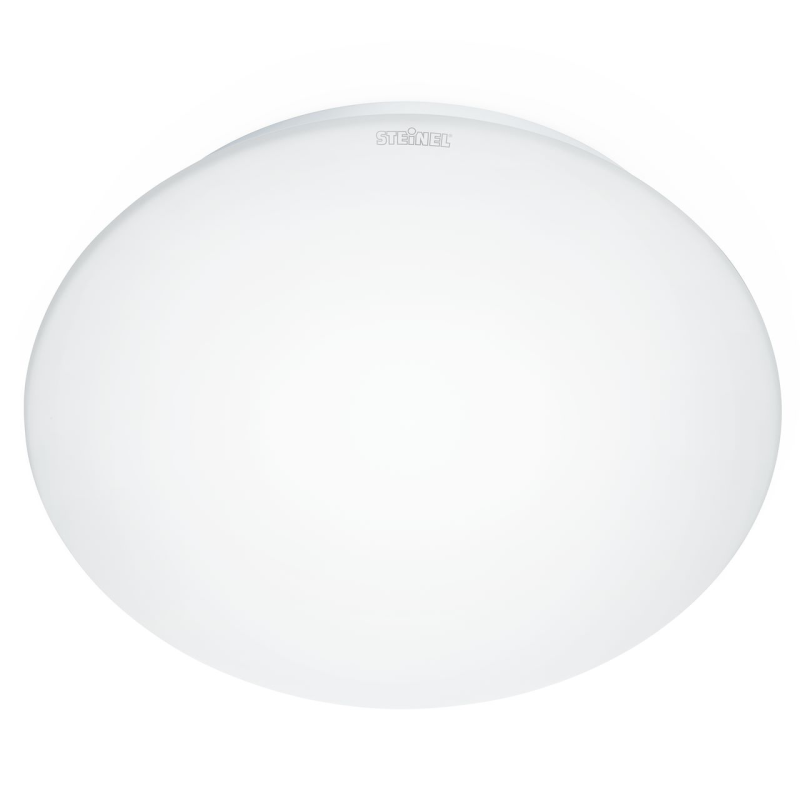

Porthole rs 16 LED with sensor at glass EU 3000K

035105
4007841035105
Product line: Rs pro, Protection class (IP): IP44, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€193.64
€154.92 Save 20%
Tax included Delivery within 14 working days in Europe - Price for 1u.
Quantity
On order / 14 days

100% secure payments
Close
Description

Porthole rs 16 LED with sensor at glass EU 3000K - 035105

Porthole rs 16 LED with sensor at glass EU 3000K
Color temperature
3000K
Beam angle
very extensive beam +80°
Protection class (IP)
IP44
Class electric
class II
Color rendering index (CRI)
80 .. 89

main features - Steinel 035105

  • Product line: Rs pro
  • Protection class (IP): IP44
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: Steinel 035105 / EAN: 4007841035105
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSteinel
Reference035105
EAN4007841035105
Customs code94051150
Product lineRs pro
Design and finish
Case colorWhite
Surface finishMatt
Material of the glassOpal glass
MaterialGlass
Light information
Beam angleFaisceau très extensif +80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Diameter255 mm
Height/depth95 mm
Technical specifications
DeviceLED driver constant current
Equipment suppliedYes
With sensor twilightYes
With sensor of lightYes
With sensor of movementYes
Energy efficiency class of the supplied exchangeable lampA++
Max. energy efficiency class of the exchangeable lampA++
Minimum energy efficiency class of the exchangeable lampA
Nominal current of the LED at constant current230 mA
Luminaire efficiency98.7097 lm/W
Light emissionDirect/indirect
Power factor (cos phi)0.92
Effective luminous flux918 lm
Protection class (IP)IP44
Protection class against impacts (IK)IK03
Wall mountingYes
Number of poles2
Fire protection "D"No
Accepted lamp power9.3 .. 9.3 W
System power9.3 W
Lighting power9.5 W
Light distributionSymmetrical
Wire surface6 mm²
Light source includedYes
Ambient temperature40 °C
Nominal room temperature according to IEC 62722-2-1-10...40 °C
Color temperature3000 K
Glow-wire protection650 °C - 30 s
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringSuitable for through-wiring
Interface
Programmable variationYes
