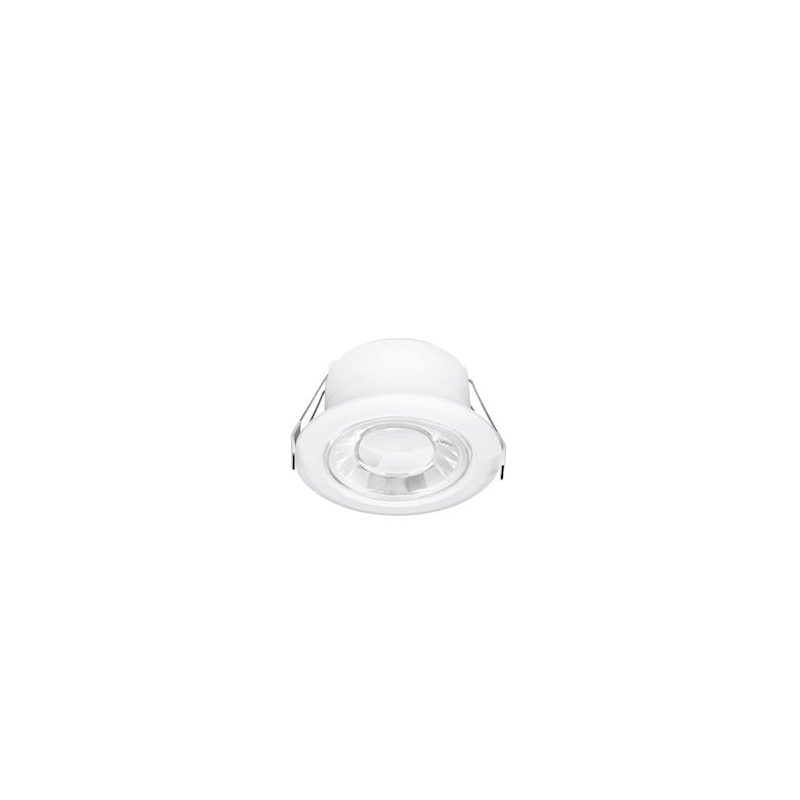

Spryte - spot light LED fixed IP44 RE2020 10W 60° 4000K dimmable. round or square BL

ENDDL101940
5055155406110
Product line: Spryte, Protection class (IP): IP44, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€45.20
Tax included Stock: 1 (+ on order) - Delivery within 10 working days in Europe - Price for 1u.
Quantity
In stock (1 u)

100% secure payments
Close
Description

Spryte - spot light LED fixed IP44 RE2020 10W 60° 4000K dimmable. round or square BL - ENDDL101940

Spryte - spot light LED fixed IP44 RE2020 10W 60° 4000K dimmable. round or square BL
Color temperature
4000K
Beam angle
Extensive beam 40-80°
Luminous flux (Lumen)
1100lm
Protection class (IP)
IP44
Class electric
class II
Color rendering index (CRI)
80 .. 89

Strong points

green-cm15.jpg Protection class (IP): IP44

main features - Switch Lite ENDDL101940

  • Product line: Spryte
  • Protection class (IP): IP44
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Switch Lite ENDDL101940 / EAN: 5055155406110
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSwitch Lite
ReferenceENDDL101940
EAN5055155406110
Customs code94051140
Product lineSpryte
Design and finish
Case colorWhite
Light information
Beam angleFaisceau extensif 40-80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Diameter105 mm
Embedding diameter90 mm
Height/depth57 mm
Installation height/depth57 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Equipment suppliedYes
With sensor of lightNo
Integrated diameter105 mm
Luminaire efficiency110 lm/W
Light emissionDirect
Power factor (cos phi)0.5
Luminous flux (Lumen)1100 lm
Effective luminous flux1100 lm
Protection class (IP)IP44
Protection class against impacts (IK)IK03
Wall mountingNo
Fire protection "D"No
Accepted lamp power10 W
System power10 W
RegulabilityNot adjustable
Light distributionSymmetrical
Color temperature4000 K

Documentation

Brochures and data sheets

Consult the manufacturer's technical documentation and instructions to guide you in the safe use of your product in accordance with the regulations.
documentationEnergy sheet - Aurora ENDDL101940
documentationProduct sheet - Aurora ENDDL101940
documentationInstructions - Aurora ENDDL101940
