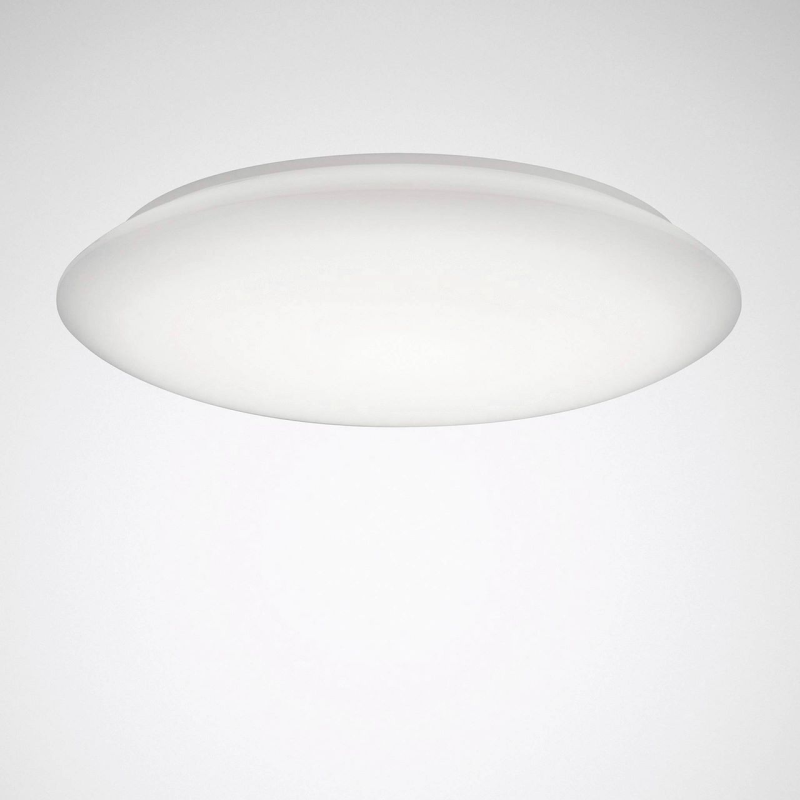

| Manufacturer | Trilux |
| Reference | 6860951 |
| EAN | 4018242368938 |
| Customs code | 94051190 |
| Case color | White |
| Material | Steel |
| Color of light | White |
| Color rendering index (CRI) | 80 .. 89 |
| Adjustable color temperature | Continuous |
| Class electric | I |
| Nominal voltage | 240 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for flush mounting | No |
| Diameter | 520 mm |
| Height/depth | 84 mm |
| Device | Electronic transformer |
| Exchangeable control unit | Yes |
| Equipment supplied | Yes |
| Rated life L70/B50 at 25°C | 50000 h |
| Light distribution element | Diffuser |
| Light emission | Direct/indirect |
| Power factor (cos phi) | 0.95 |
| Effective luminous flux | 3000 lm |
| Photobiological risk group according to EN 62471 | GR0 |
| Protection class (IP) | IP40 |
| Protection class against impacts (IK) | IK02 |
| Wall mounting | Yes |
| Number of lamps/modules | 1 |
| Number of poles | 5 |
| Max. number of luminaires per circuit breaker B16 | 24 |
| Max. number of luminaires per circuit breaker C16 | 40 |
| System power | 55 W |
| Lumen adjustment | Continuous |
| Light distribution | Symmetrical |
| Light source included | Yes |
| Nominal room temperature according to IEC 62722-2-1 | -20 .. 25 °C |
| Glow-wire test according to IEC 60695-2-11 | 650 °C - 30 s |
| Type | Interchangeable LED |
| Type of wiring | Suitable for through-wiring |
| Type of connection | Automatic bollard |
| Color uniformity (mcAdam ellipse) | SDCM3 |
| DALI variation-2 | Yes |
| DALI variation | Yes |
| Variation Touch and DIM | Yes |
