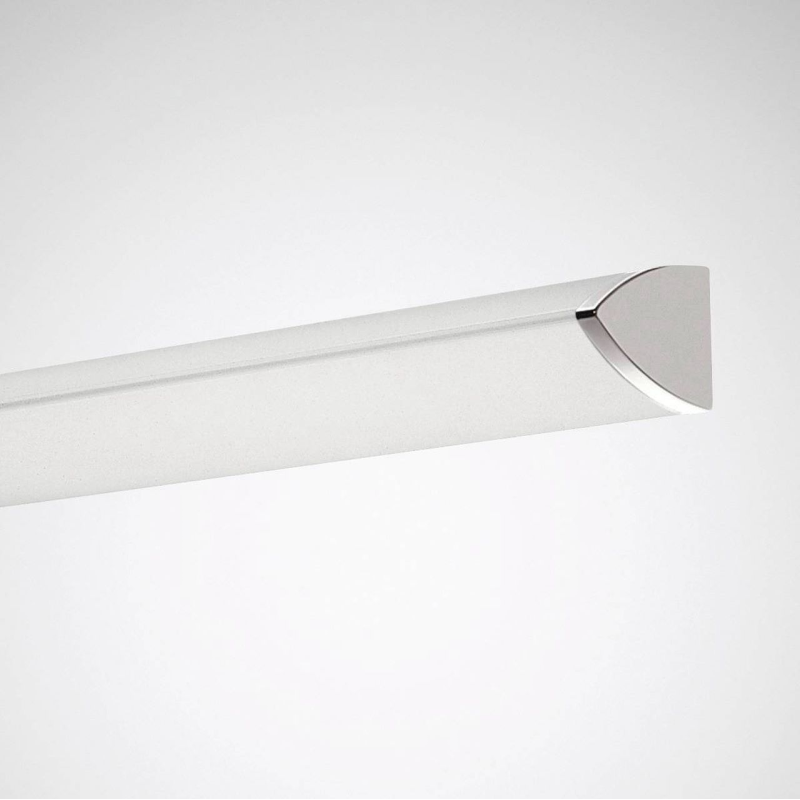

| Manufacturer | Trilux |
| Reference | 6690140 |
| EAN | 4018242347377 |
| Customs code | 94051190 |
| Case color | Chrome |
| Material | Aluminum |
| Color of light | White |
| Color rendering index (CRI) | 80 .. 89 |
| Class electric | I |
| Nominal voltage | 220...240 V |
| Type of voltage | AC |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Suitable for flush mounting | No |
| Height/depth | 111 mm |
| Width | 88 mm |
| Length | 1200 mm |
| Device | Electronic transformer |
| Exchangeable control unit | Yes |
| Equipment supplied | Yes |
| Rated life L70/B50 at 25°C | 50000 h |
| Light distribution element | Diffuser |
| Light emission | Direct/indirect |
| Power factor (cos phi) | 0.9 |
| Effective luminous flux | 2400 lm |
| Photobiological risk group according to EN 62471 | GR0 |
| Protection class (IP) | IP40 |
| Protection class against impacts (IK) | IK02 |
| Wall mounting | Yes |
| Number of lamps/modules | 1 |
| Number of poles | 3 |
| Max. number of luminaires per circuit breaker B16 | 52 |
| Max. number of luminaires per circuit breaker C16 | 85 |
| Protection of the housing surface | Lacquered / painted |
| System power | 22 W |
| Light distribution | Symmetrical |
| Light source included | Yes |
| Nominal room temperature according to IEC 62722-2-1 | -20 .. 25 °C |
| Color temperature | 4000 K |
| Glow-wire test according to IEC 60695-2-11 | 650 °C - 30 s |
| Type | Interchangeable LED |
| Type of wiring | Suitable for through-wiring |
| Type of connection | Automatic bollard |
| Color uniformity (mcAdam ellipse) | SDCM3 |
| Control via bluetooth | No |
