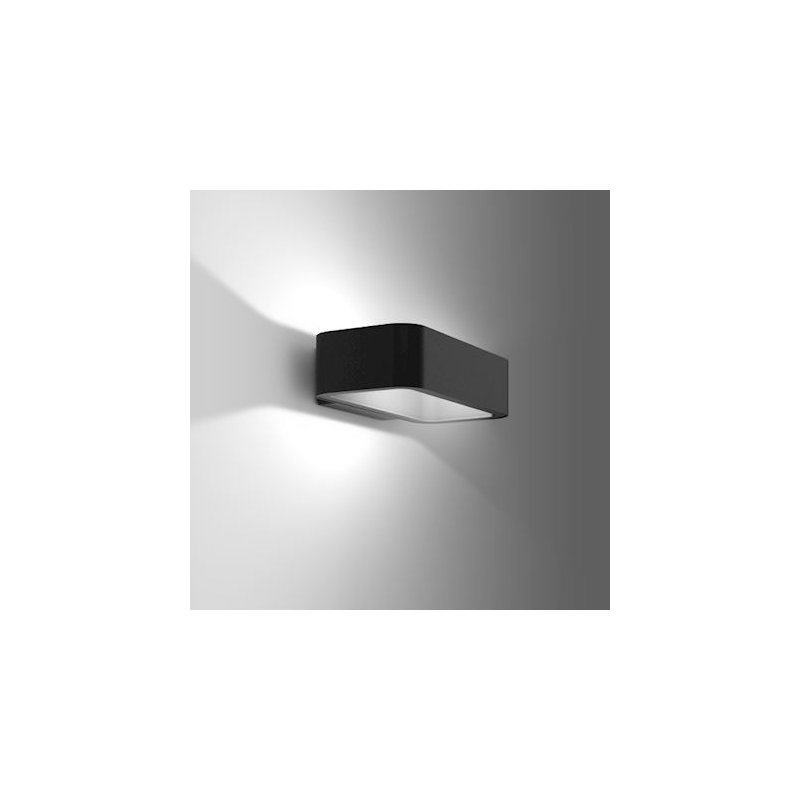

HB 103 9W 300lm 830 anthracite On/Off

611982.0031
4051859151999
Product line: Home 103, Protection class (IP): IP54, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€245.28
€196.22 Save 20%
Tax included Stock: 69 (+ on order) - Delivery within 11 working days in Europe - Price for 1u.
Quantity
In stock (69 u)

100% secure payments
Close
Description

HB 103 9W 300lm 830 anthracite On/Off - 611982.0031

HB 103 9W 300lm 830 anthracite On/Off
Color temperature
3000K
Beam angle
diffuse beam
Protection class (IP)
IP54
Class electric
class I
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
27.000
Glare assessment (UGR)
27

main features - RZB 611982.0031

  • Product line: Home 103
  • Protection class (IP): IP54
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: RZB 611982.0031 / EAN: 4051859151999

High Quality Product

Thanks to its aluminium structure this Home 103 range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerRZB
Reference611982.0031
EAN4051859151999
Customs code94051190
Product lineHome 103
Design and finish
Case colorAnthracite
Material of the glassOpaline plastic
MaterialAluminum
Light information
Beam angleFaisceau diffus
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage200.000 .. 240.000 V
Nominal voltage200...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth55.000 mm
Height/depth55 mm
Width130.000 mm
Width130 mm
Length220.000 mm
Length220 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classF
Start of phase breakNo
End of phase breakNo
Rated current38.000-45.000 mA
Rated current38...45 mA
Life span25000 h
Rated life L70/B50 at 25°C25000.000 h
Rated life L70/B50 at 25°C25000 h
Luminaire efficiency34 lm/W
Light emissionDirect/indirect
Recessed in insulated ceiling, fire protection "F with roof".Yes
Glare assessment (UGR)27.000
Glare assessment (UGR)27
Effective luminous flux300 lm
Photobiological risk group according to EN 62471GR1
Energy efficiency index (EEI)0.26
Protection class (IP)IP54
Protection class against impacts (IK)IK06
Wall mountingYes
Number of lamps/modules1.000
Number of lamps/modules1
Number of poles3
Max. number of luminaires per circuit breaker B16180.000
Max. number of luminaires per circuit breaker B16180
Fire protection "D"No
Accepted lamp power9 W
Accepted lamp power9 .. 9 W
System power9.000 W
System power9 W
Light distributionAsymmetrical
Wire surface1.500 mm²
Wire surface1.5 mm²
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-20 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Type of connectionScrew terminal
Type of connectionScrew terminal
Color uniformity (mcAdam ellipse)SDCM2
Interface
Control via bluetoothNo
