HB 110 9W 570lm 830 anthracite On/Off

931186.0031
4051859211679
Product line: Home 110, Protection class (IP): IP54, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€201.25
€163.01 Save 19%
Tax included Delivery within 24 working days in Europe - Price for 1u.
Quantity
On order / 24 days

100% secure payments
Description

Product characteristics

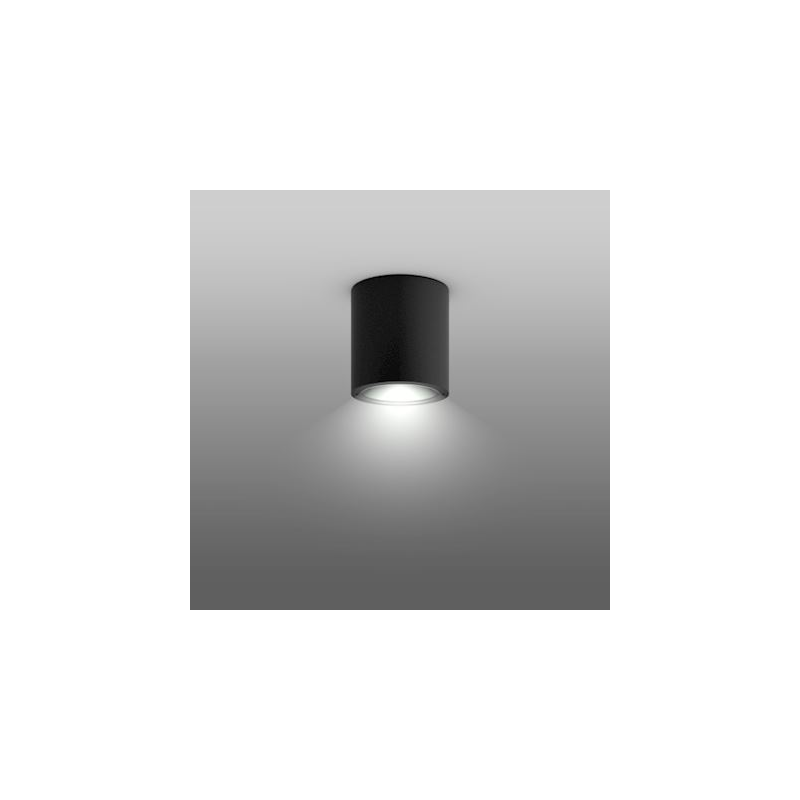

HB 110 9W 570lm 830 anthracite On/Off
Color temperature
3000K
Beam angle
very medium beam 10-20°.
Protection class (IP)
IP54
Class electric
Class I
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
22.200

main features

  • Product line: Home 110
  • Protection class (IP): IP54
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: RZB 931186.0031 / EAN: 4051859211679

High Quality Product

Thanks to its aluminium structure this Home 110 range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerRZB
Reference931186.0031
EAN4051859211679
Customs code94051190
Product lineHome 110
Design and finish
Case colorAnthracite
Material of the glassGlass transparent
MaterialAluminum
Light information
Beam angleFaisceau très moyen 10-20°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage220.000 .. 240.000 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Diameter90.000 mm
Height/depth95.000 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classF
Start of phase breakNo
End of phase breakNo
Rated current38.000-41.000 mA
Rated life L70/B50 at 25°C25000.000 h
Luminaire efficiency64 lm/W
Light emissionDirect
Recessed in insulated ceiling, fire protection "F with roof".Yes
Glare assessment (UGR)22.200
Effective luminous flux570 lm
Photobiological risk group according to EN 62471GR1
Protection class (IP)IP54
Protection class against impacts (IK)IK06
Wall mountingNo
Number of lamps/modules1.000
Number of poles3
Max. number of luminaires per circuit breaker B1699.000
Fire protection "D"No
Accepted lamp power9 W
System power9.000 W
Light distributionSymmetrical
Wire surface1.500 mm²
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-20 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11960 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Type of connectionScrew terminal
Type of connectionScrew terminal
Color uniformity (mcAdam ellipse)SDCM2
Interface
Control via bluetoothNo
