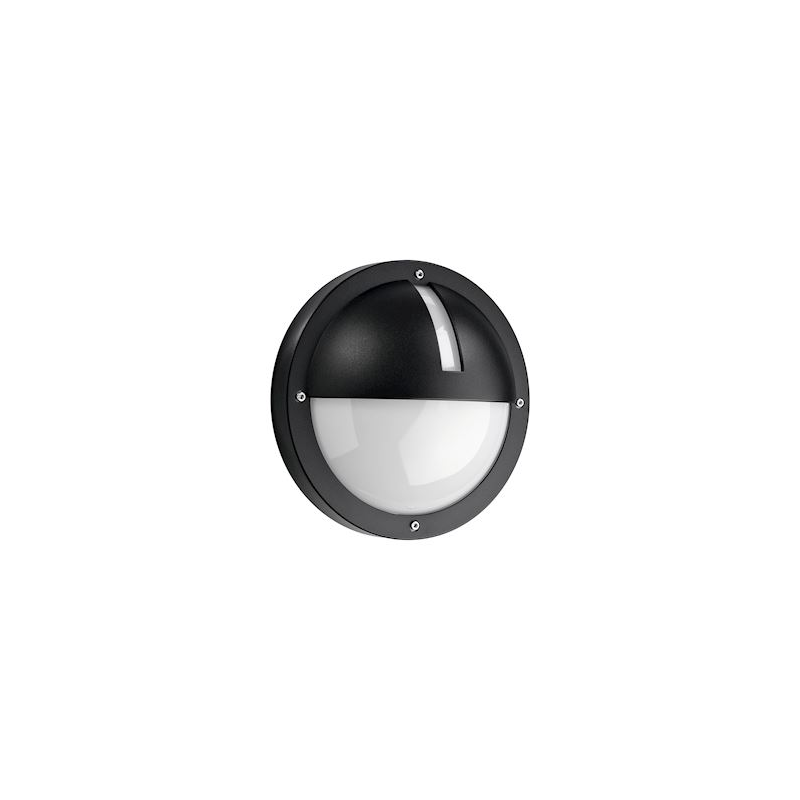

Uno 1100 porthole with cap black LED 3000K class II IP65

644640
7021986446401
Color: Black, Product line: Uno, Protection class (IP): IP65, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€305.24
€244.20 Save 20%
Tax included Delivery within 18 working days in Europe - Price for 1u.
Quantity
On order / 18 days

100% secure payments
Close
Description

Uno 1100 porthole with cap black LED 3000K class II IP65 - 644640

Uno 1100 porthole with cap black LED 3000K class II IP65
Color temperature
3000K
Beam angle
very extensive beam +80°
Luminous flux (Lumen)
420lm
Protection class (IP)
IP65
Class electric
class II
Color rendering index (CRI)
80 .. 89

main features - SG Lighting 644640

  • Color: Black
  • Product line: Uno
  • Protection class (IP): IP65
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: SG Lighting 644640 / EAN: 7021986446401

High Quality Product

By offering an extended warranty to 5 years, SG Lighting ensures a high level of quality of this product that will give you satisfaction for many years. Thanks to its aluminium structure this Uno range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSG Lighting
Reference644640
EAN7021986446401
Warranty5 years
Customs code94051190
Product lineUno
Design and finish
ColorBlack
Case colorBlack
Material of the glassOpaline plastic
MaterialAluminum
Light information
Beam angleFaisceau très extensif +80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricII
Nominal voltage220 V
Nominal voltage220...240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Diameter270 mm
Height/depth270 mm
Width270 mm
Length270 mm
Technical specifications
Suitable for pendant lightsNo
Bulb(s) included(s)Yes
DeviceNo required
Exchangeable control unitNo
With sensor of lightNo
Energy efficiency class of the supplied exchangeable lampA+
Energy efficiency class of the supplied lampA++, A+, A (LED)
Max. energy efficiency class of the exchangeable lampA++
Minimum energy efficiency class of the exchangeable lampA
Start of phase breakNo
End of phase breakNo
Nominal current of the LED at constant current0 mA
Rated life L70/B50 at 25°C50000 h
Luminaire efficiency43 lm/W
Light emissionDirect
Power factor (cos phi)0.9
Luminous flux (Lumen)420 lm
Effective luminous flux440 lm
Protection class (IP)IP65
Protection class against impacts (IK)IK10
Wall mountingNo
Wall mountingYes
Number of lamps/modules1
Fire protection "D"No
Accepted lamp power11.5 W
Accepted lamp power10 .. 10 W
System power11.5 W
System power10 W
Light distributionSymmetrical
Wire surface2.5 mm²
Light source includedYes
Nominal room temperature according to IEC 62722-2-125 °C
Nominal room temperature according to IEC 62722-2-125 .. 25 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeInterchangeable LED
Type of wiringSuitable for through-wiring
GlassGlass in plastic opal
Interface
Control via bluetoothNo
