• -20%

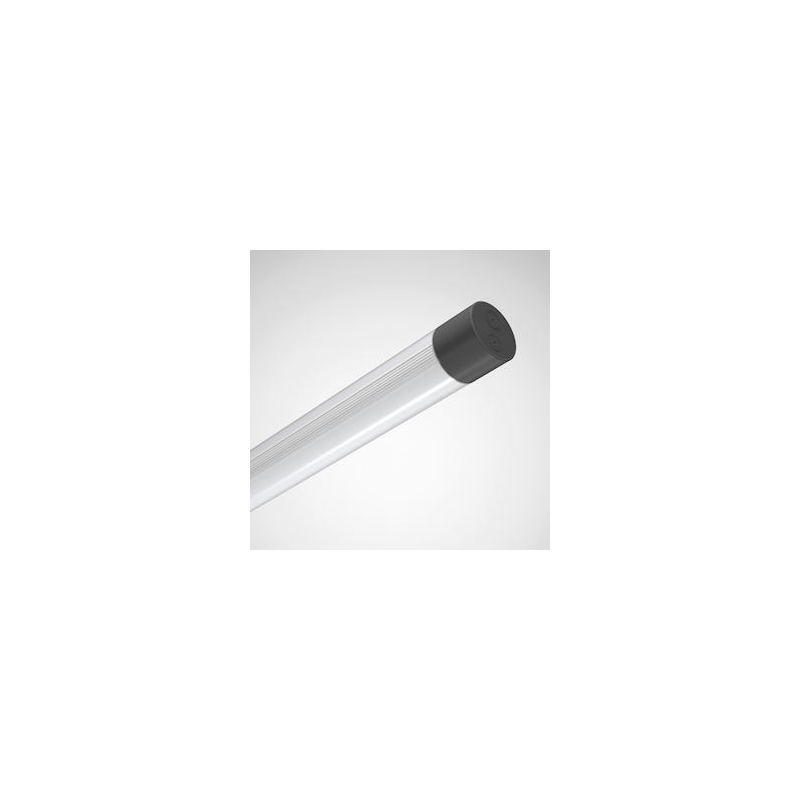

Luminaire watertight Tugra 49W 1568mm 6500K 6400lm IP66 IK10 On/Off gray

8050640
8428879024248
Product line: Tugra, Protection class (IP): IP66, Color rendering index (CRI): 80 .. 89, Color temperature: 6500K
€184.88
€147.91 Save 20%
Tax included Stock: 3 (+ on order) - Delivery within 8 working days in Europe - Price for 1u.
Quantity
In stock (3 u)

100% secure payments
Close
Description

Luminaire watertight Tugra 49W 1568mm 6500K 6400lm IP66 IK10 On/Off gray - 8050640

Luminaire watertight Tugra 49W 1568mm 6500K 6400lm IP66 IK10 On/Off gray
Color temperature
6500K
Beam angle
diffuse beam
Protection class (IP)
IP66
Class electric
class I
Color rendering index (CRI)
80 .. 89

main features - Trilux 8050640

  • Product line: Tugra
  • Protection class (IP): IP66
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 6500K
  • reference: Trilux 8050640 / EAN: 8428879024248
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerTrilux
Reference8050640
EAN8428879024248
Customs code94051140
Product lineTugra
Design and finish
Case colorGrey
Material of the glassOpaline plastic
MaterialPlastic
Light information
Beam angleFaisceau diffus
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage220 .. 240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Diameter75 mm
Height/depth75.0 mm
Width75 mm
Length1568 mm
Technical specifications
Suitable for pendant lightsYes
DeviceElectronic transformer
Exchangeable control unitYes
Equipment suppliedYes
With sensor of lightNo
Start of phase breakNo
End of phase breakNo
Rated life L70/B50 at 25°C50000 h
Rated life L80/B50 at 25°C50000 h
Luminaire efficiency131 lm/W
Light emissionDirect/indirect
Power factor (cos phi)0.95
Effective luminous flux6400 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP66
Protection class against impacts (IK)IK10
Wall mountingYes
Number of lamps/modules1
Number of poles3
Max. number of luminaires per circuit breaker B1630.00
Max. number of luminaires per circuit breaker C1651.00
Fire protection "D"Yes
System power49.00 W
Light distributionSymmetrical
Light source includedYes
Light source includedYes
Nominal room temperature according to IEC 62722-2-1-25 - 35 °C
Color temperature6500K
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeInterchangeable LED
Type of wiringSuitable for through-wiring
Type of connectionAutomatic bollard
Type of connectionFile terminal
Color uniformity (mcAdam ellipse)SDCM3
Interface
Control via bluetoothNo
