• -20%

OleveonF 12 B 4000-840 and PC TWA

7521040
4018242532407
Product line: Oleveon fit, Protection class (IP): IP66, Color rendering index (CRI): 80 .. 89, Color temperature: 4000 K
€209.14
€167.31 Save 20%
Tax included Stock: 25 (+ on order) - Delivery within 11 working days in Europe - Price for 1u.
Quantity
In stock (25 u)

100% secure payments
Close
Description

Product characteristics

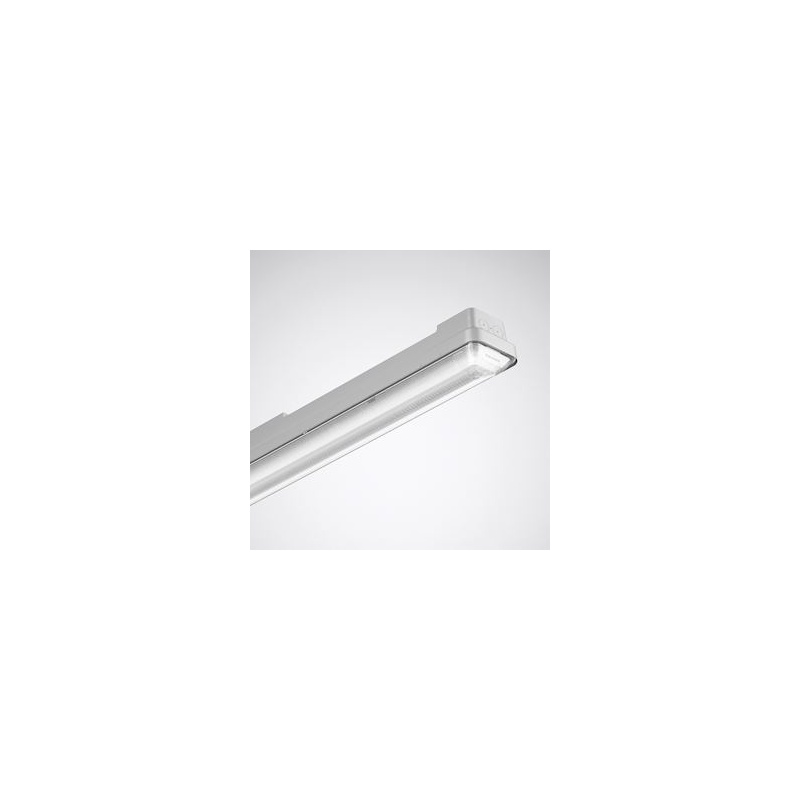

OleveonF 12 B 4000-840 and PC TWA
Color temperature
4000K
Beam angle
Extensive beam 40-80°
Protection class (IP)
IP66
Class electric
Class I
Color rendering index (CRI)
80 .. 89

main features

  • Product line: Oleveon fit
  • Protection class (IP): IP66
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 4000 K
  • reference: Trilux OLEVEONF12B4000-840ETPCTWA / EAN: 4018242532407
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerTrilux
ReferenceOLEVEONF12B4000-840ETPCTWA
EAN4018242532407
Customs code94051190
Product lineOleveon fit
Design and finish
Case colorGrey
Surface finishMatt
Material of the glassPlastic transparent
MaterialPlastic
Light information
Beam angleFaisceau extensif 40-80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage230 .. 240 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Dimensions and weight
Height/depth91.0 mm
Width102 mm
Length1257 mm
Technical specifications
Suitable for pendant lightsYes
DeviceElectronic transformer
Exchangeable control unitYes
Equipment suppliedYes
With sensor of lightNo
Start of phase breakNo
End of phase breakNo
Rated life L70/B50 at 25°C50000 h
Luminaire efficiency139 lm/W
Light distribution elementFocus lens
Light emissionDirect/indirect
Power factor (cos phi)0.95
Effective luminous flux3900 lm
Photobiological risk group according to EN 62471GR0
Protection class (IP)IP66
Protection class against impacts (IK)IK08
Wall mountingYes
Number of lamps/modules1
Number of poles3
Max. number of luminaires per circuit breaker B1628.00
Fire protection "D"Yes
System power28.00 W
Lighting power28 W
Light distributionSymmetrical
Light source includedYes
Light source includedYes
Ambient temperature-20 .. 35 °C °C
Nominal room temperature according to IEC 62722-2-1-20 - 35 °C
Color temperature4000 K
Glow-wire protection850 °C - 5s
Glow-wire test according to IEC 60695-2-11850 °C - 30 s
TypeInterchangeable LED
Type of wiringSuitable for through-wiring
Color uniformity (mcAdam ellipse)SDCM3
