• -20%

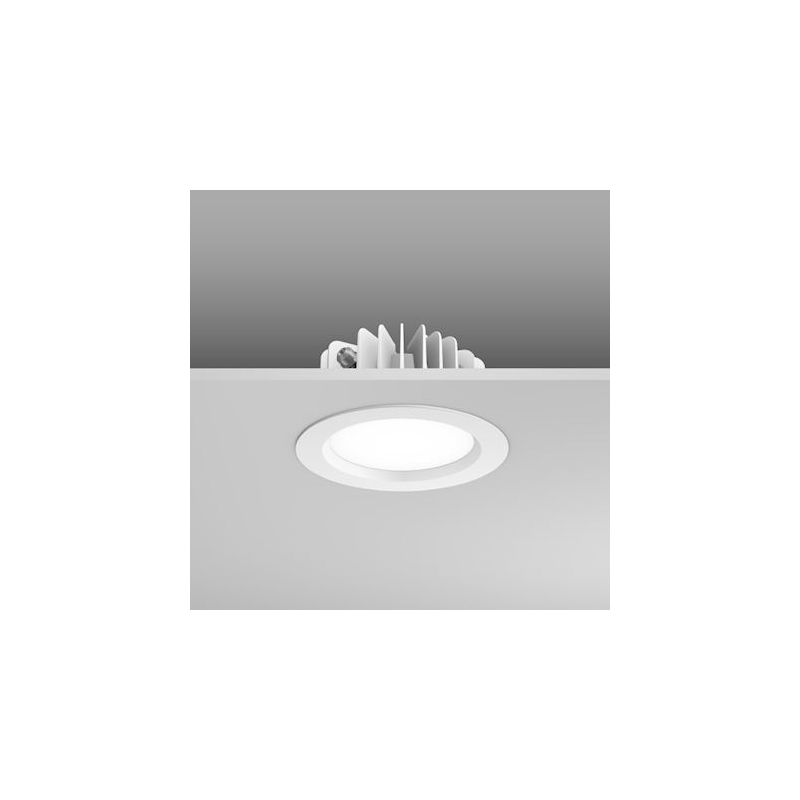

LEDONA ECO round 10W 740lm 830 white phase-cut

901433.002
4051859028833
Product line: Ledona eco, Protection class (IP): IP65, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K
€234.19
€187.35 Save 20%
Tax included Delivery within 24 working days in Europe - Price for 1u.
Quantity
On order / 24 days

100% secure payments
Close
Description

LEDONA ECO round 10W 740lm 830 white phase-cut - 901433.002

LEDONA ECO round 10W 740lm 830 white phase-cut
Color temperature
3000K
Beam angle
very extensive beam +80°
Luminous flux (Lumen)
740lm
Protection class (IP)
IP65
Class electric
class I
Color rendering index (CRI)
80 .. 89
Glare assessment (UGR)
25.500

main features - RZB 901433.002

  • Product line: Ledona eco
  • Protection class (IP): IP65
  • Color rendering index (CRI): 80 .. 89
  • Color temperature: 3000 K
  • reference: RZB 901433.002 / EAN: 4051859028833

High Quality Product

Thanks to its aluminium structure this Ledona eco range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerRZB
Reference901433.002
EAN4051859028833
Customs code94051190
Product lineLedona eco
Design and finish
Case colorWhite
Material of the glassOpaline plastic
MaterialAluminum
Light information
Beam angleFaisceau très extensif +80°
Color of lightWhite
Color rendering index (CRI)80 .. 89
Electrical information
Class electricI
Nominal voltage220.000 .. 240.000 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingYes
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for flush mountingYes
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo
Dimensions and weight
Diameter180.000 mm
Embedding diameter160 mm
Height/depth3.000 mm
Installation height/depth92.000 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitNo
Equipment suppliedYes
With sensor of lightNo
Energy efficiency class of the supplied lampA++, A+, A (LED)
Energy classE
Start of phase breakYes
End of phase breakYes
Rated current42.000-45.000 mA
Integrated diameter160 mm
Luminous efficacy of the lamp74 lm/W
Luminaire efficiency74 lm/W
Light emissionDirect
Glare assessment (UGR)25.500
Power factor (cos phi)0.990
Luminous flux (Lumen)740 lm
Effective luminous flux740 lm
Photobiological risk group according to EN 62471GR1
Protection class (IP)IP65
Protection class against impacts (IK)IK07
Wall mountingNo
Number of lamps/modules1.000
Number of poles3
Max. number of luminaires per circuit breaker B16100.000
Max. number of luminaires per circuit breaker C16100.000
Fire protection "D"No
Accepted lamp power10 W
System power10.000 W
RegulabilityNot adjustable
Light distributionSymmetrical
Connectable conductor section1 mm²
Light source includedYes
Light source includedYes
Brushed surfaceNo
Nominal room temperature according to IEC 62722-2-1-40 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Color uniformity (mcAdam ellipse)SDCM3
Variation according to the orderYes
Interface
Control via bluetoothNo
