Nano Tilt downlight black 240lm 3000K Ra sup 90 power supply not included

907015
7021989070153
Product line: Nano, Protection class (IP): IP44, Color rendering index (CRI): 90 .. 100, Color temperature: 3000 K
€46.66
€37.32 Save 20%
Tax included Stock: 52 (+ on order) - Delivery within 10 working days in Europe - Price for 1u.
Quantity
In stock (52 u)

100% secure payments
Close
Description

Product characteristics

Nano Tilt downlight black 240lm 3000K Ra sup 90 power supply not included
Color temperature
3000K
Beam angle
medium beam 20-40°
Luminous flux (Lumen)
0...499lm
Protection class (IP)
IP44
Class electric
class III
Color rendering index (CRI)
90 .. 100

main features

  • Product line: Nano
  • Protection class (IP): IP44
  • Color rendering index (CRI): 90 .. 100
  • Color temperature: 3000 K
  • reference: SG Lighting 907015 / EAN: 7021989070153

High Quality Product

Thanks to its aluminium structure this Nano range luminaire offers you rock-solid strength and guaranteed longevity.
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerSG Lighting
Reference907015
EAN7021989070153
Customs code94051190
Product lineNano
Design and finish
Case colorBlack
Material of the glassOpaline plastic
MaterialAluminum
Light information
Beam angleFaisceau moyen 20-40°
Color of lightWhite
Color rendering index (CRI)90 .. 100
Electrical information
Class electricIII
Nominal voltage10...0 V
Type of voltageDC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingNo
Suitable for surface mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingNo
Suitable for rail mountingNo
Suitable for crossbar mountingNo

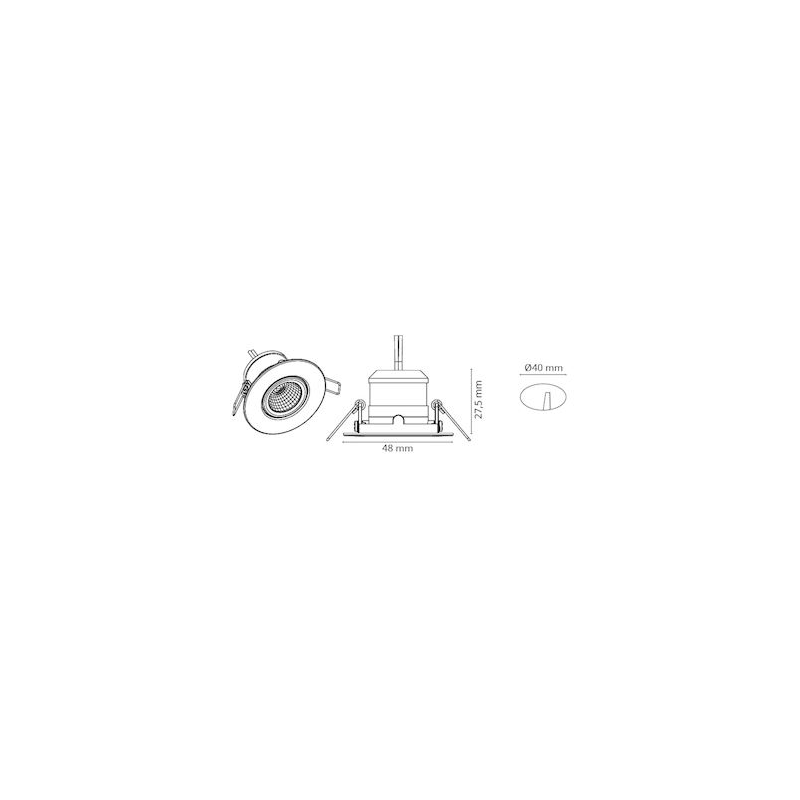

Dimensions and weight
Diameter50 mm
Embedding diameter40 mm
Height/depth29 mm
Installation height/depth27 mm
Width48 mm
Installation width40 mm
Length48 mm
Embedding length40 mm
Technical specifications
Suitable for pendant lightsNo
DeviceLED driver constant current
With sensor of lightNo
Energy efficiency class of the supplied exchangeable lampA
Energy efficiency class of the supplied lampA++, A+, A (LED)
Start of phase breakNo
End of phase breakNo
Rated current0 mA
Nominal current of the LED at constant current0 mA
Degree of protection (NEMA)Autre
Rated life L70/B10 at 25°C0 h
Rated life L70/B50 at 25°C50000 h
Rated life L80/B10 at 25°C0 h
Rated life L80/B50 at 25°C0 h
Rated life L90/B10 at 25°C0 h
Rated life L90/B50 at 25°C0 h
Luminous efficacy of the lamp0 lm/W
Luminaire efficiency60 lm/W
Light emissionDirect
Recessed in insulated ceiling, fire protection "F with roof".No
Power factor (cos phi)0
Luminous flux (Lumen)0...499 lm
Effective luminous flux240...0 lm
Protection class (IP)IP44
Intensity0 cd
Wall mountingNo
Number of lamps/modules1
Number of poles2
Fire protection "D"No
Accepted lamp power4 .. 0 W
System power4 W
ReflectorUltra glossy
RegulabilityOrientable
Light distributionSymmetrical
Wire surface1 mm²
Connectable conductor section0.5 mm²
Brushed surfaceNo
Harmonic distortion rate0
Nominal room temperature according to IEC 62722-2-125 .. 0 °C
Color temperature3000 K
TypeLED not interchangeable
Type of wiringSuitable for through-wiring
Color uniformity (mcAdam ellipse)SDCM3
