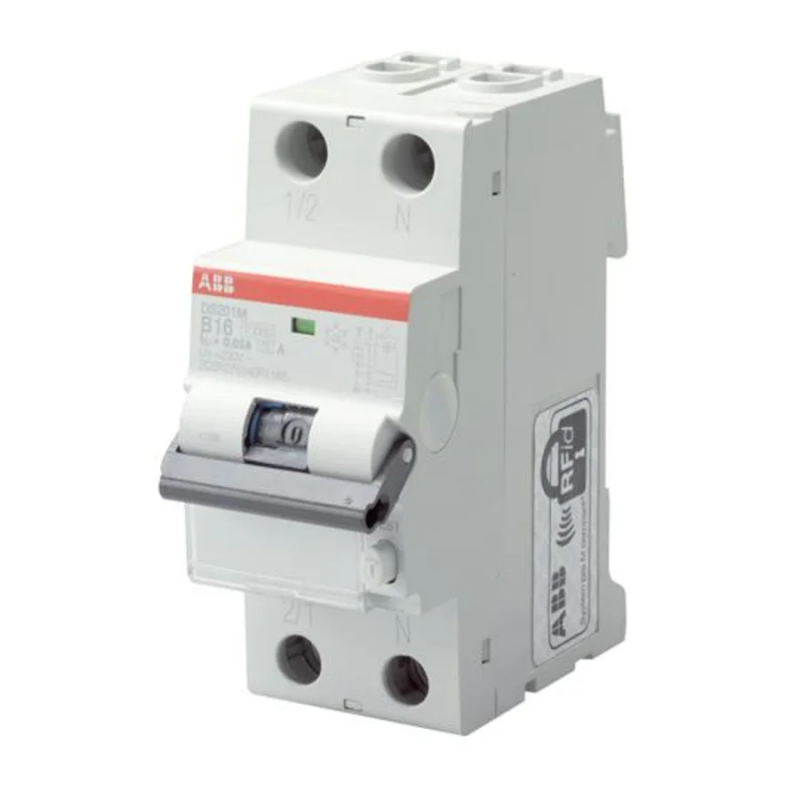

| Manufacturer | ABB |
| Reference | 2CSR245041R1204 |
| EAN | 8012542162100 |
| Customs code | 85363030 |
| Type of differential current | AC |
| Type of voltage | AC |
| Suitable for flush mounting | No |
| Width in number of modules | 2 |
| Embedding depth | 69 mm |
| With locking device | Yes |
| Calibre | 20 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 50/60Hz |
| Protection class (IP) | IP2X |
| Number of poles | 2 |
| Number of poles protected | 1 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 25 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 °C |
| Tension | 240 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 0.25 kA |
