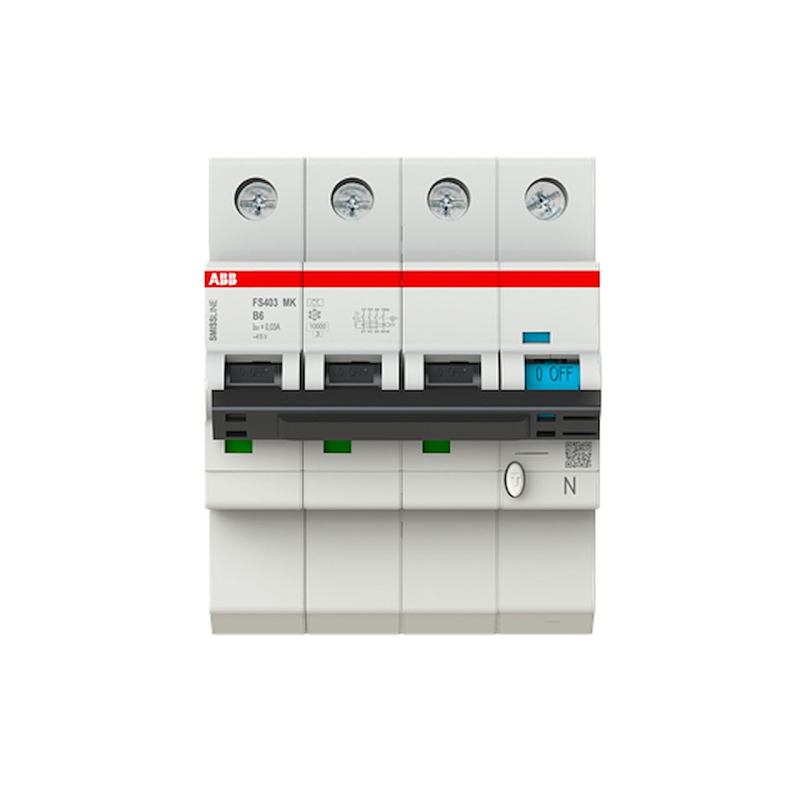

| Manufacturer | ABB |
| Reference | 2CCG001739R0001 |
| EAN | 7612271522087 |
| Customs code | 85362010 |
| Type of differential current | F |
| Type of voltage | AC |
| Width in number of modules | 4 |
| Embedding depth | 78 mm |
| Calibre | 6 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | B |
| Degree of pollution | 2 |
| Frequency | 50/60Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4 |
| Number of poles protected | 3 |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 .. 60 °C |
| Tension | 415 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 3 kA |
