| Manufacturer | ABB |

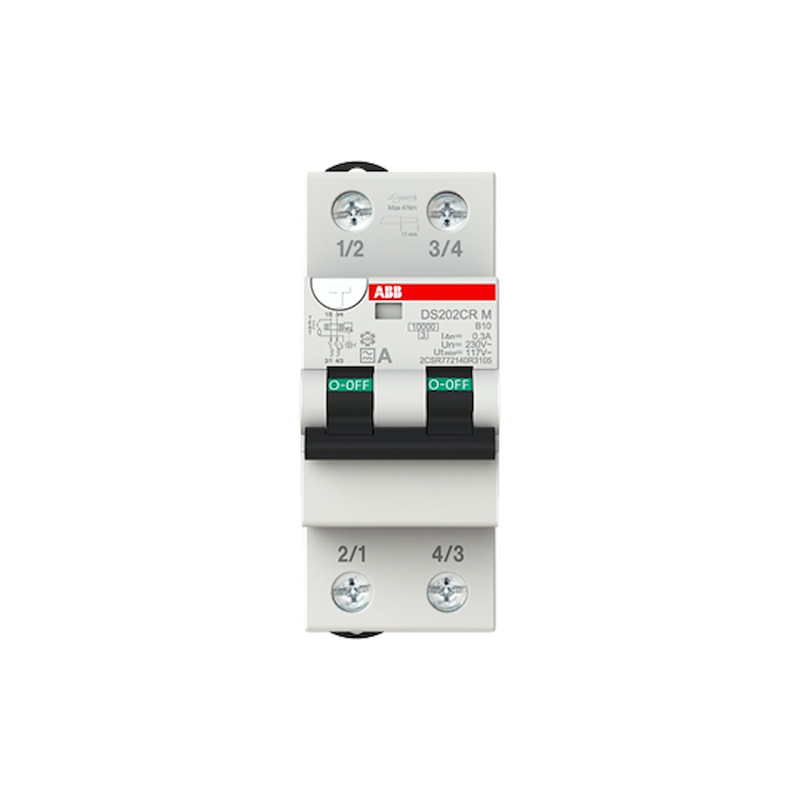

| Reference | 2CSR772140R3105 |
| EAN | 4022903034674 |
| Customs code | 85363010 |
| Type of differential current | A |
| Type of voltage | AC |
| Width in number of modules | 2 |
| Embedding depth | 72 mm |
| Calibre | 10 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | B |
| Degree of pollution | 3 |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 2 |
| Number of poles protected | 2 |
| Neutral pole simultaneously disconnected | Yes |
| Sensitivity | 0.3 A |
| Ambient temperature in operation | -25 .. 55 °C |
| Tension | 230 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 440 V |
| Shock current resistance | 0.25 kA |
