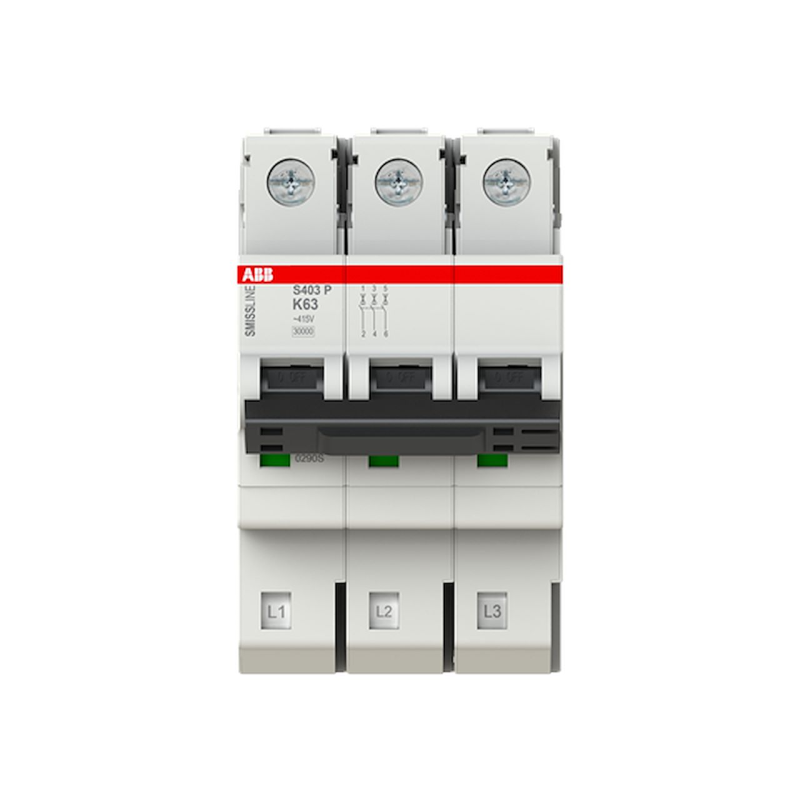

| Manufacturer | ABB |
| Reference | 2CCG000471R0001 |
| EAN | 7612271510367 |
| Customs code | 85362010 |
| Type of voltage | AC |
| Width in number of modules | 3 |
| Embedding depth | 91 mm |
| Calibre | 63 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Degree of pollution | 3 |
| Frequency | 50 .. 60 Hz |
| Protection class (IP) | IP20 |
| Number of poles | 3 |
| Number of poles protected | 3 |
| Neutral pole simultaneously disconnected | No |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 0.75 .. 35 mm² |
| Ambient temperature in operation | -25 .. 60 °C |
| Tension | 415 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 440 V |
