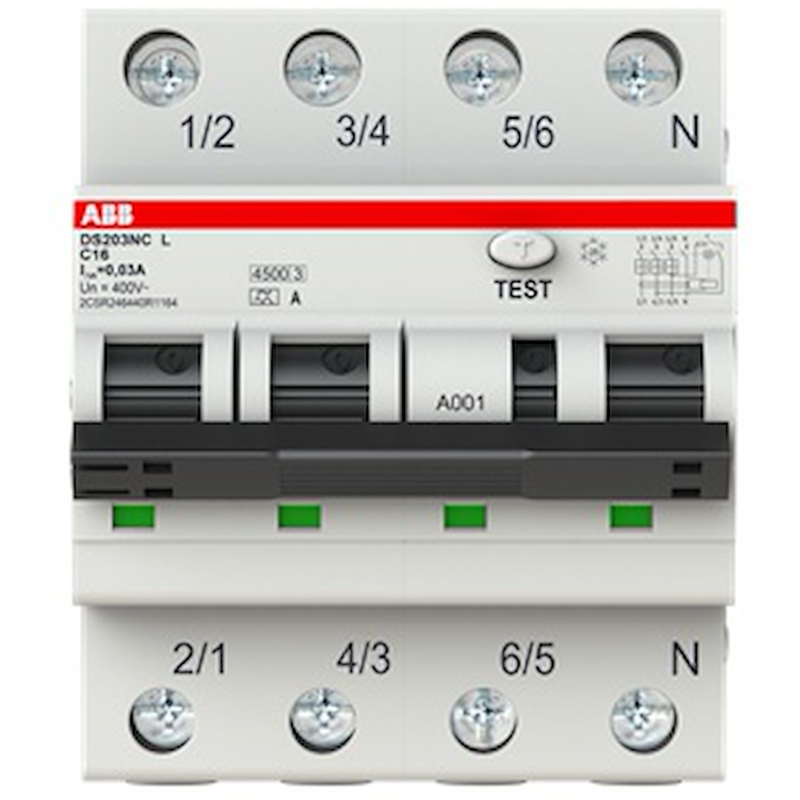

| Manufacturer | ABB |
| Reference | 2CSR246440R1164 |
| EAN | 8012542078722 |
| Customs code | 85363010 |
| Type of voltage | AC |
| Width in number of modules | 4 |
| Embedding depth | 69 mm |
| With locking device | Yes |
| Calibre | 16 A |
| Overvoltage category | 3 |
| Energy limitation class (I²t) | 3 |
| Curve | C |
| Degree of pollution | 2 |
| Frequency | 50/60Hz |
| Immune to nuisance triggers | Yes |
| Protection class (IP) | IP2X |
| Number of poles | 4 |
| Number of poles protected | 3 |
| Neutral pole simultaneously disconnected | Yes |
| Section of connection cable rigid | 25 mm² |
| Sensitivity | 0.03 A |
| Ambient temperature in operation | -25 .. 55 °C |
| Tension | 415 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated insulation voltage (Ui) | 500 V |
| Shock current resistance | 3 kA |
