-20%

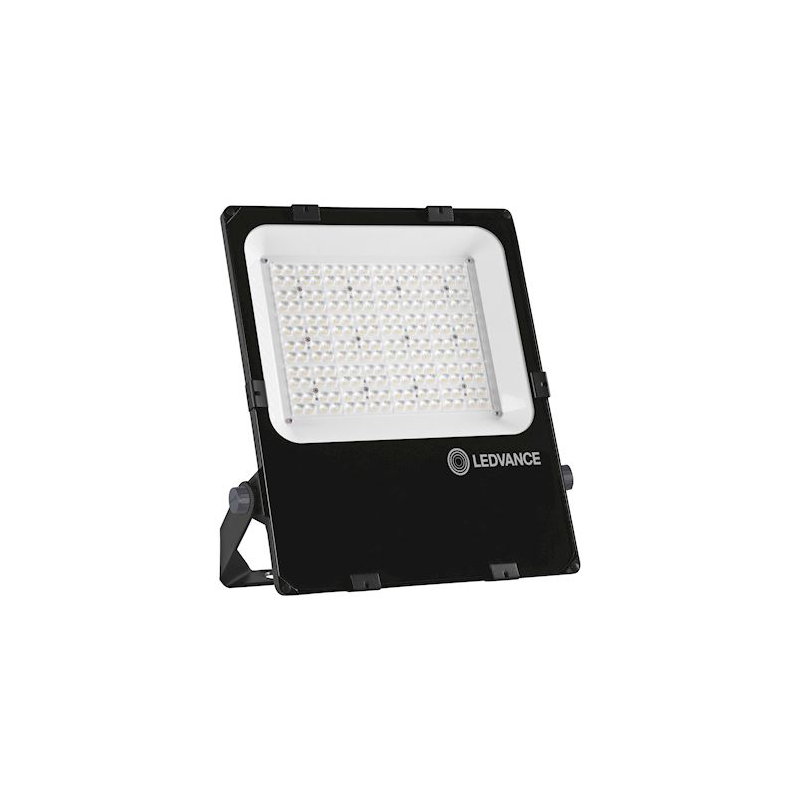

FL PFM ASYM 45x140 150W/3000K 18300lm IP66 black projector

Reference 353695

EAN 4058075353695

Brand Ledvance

Product line: Performance, Protection class (IP): IP66, Color rendering index (CRI): 80 .. 89, Color temperature: 3000 K

€698.69

€558.95 Save 20%

Tax included

Quantity

Out-of-Stock

100% secure payments

Description

Description

FL PFM ASYM 45x140 150W/3000K 18300lm IP66 black projector - 353695

FL PFM ASYM 45x140 150W/3000K 18300lm IP66 black projector

3000K

Extensive beam 40-80°

18300lm

IP66

class I

80 .. 89

main features - Ledvance 353695

Product line: Performance
Protection class (IP): IP66
Color rendering index (CRI): 80 .. 89
Color temperature: 3000 K
reference: Ledvance 353695 / EAN: 4058075353695

High Quality Product

By offering an extended warranty to 5 years, Ledvance ensures a high level of quality of this product that will give you satisfaction for many years. Thanks to its aluminium structure this Performance range luminaire offers you rock-solid strength and guaranteed longevity.

Ledvance

Find all the products of the brand Ledvance at the best price on the store domeashop.com.

See all products Ledvance

At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information

Manufacturer	Ledvance
Reference	353695
EAN	4058075353695
Warranty	5 years
Customs code	94054239
Product line	Performance

Design and finish

Case color	Black
Material of the glass	Glass transparent
Material	Aluminum

Light information

Beam angle	Faisceau extensif 40-80°
Color of light	White
Color rendering index (CRI)	80 .. 89

Electrical information

Class electric	I
Nominal voltage	220...240 V
Type of voltage	AC

Installation / Implementation

Suitable for ceiling mounting	No
Suitable for surface mounting	Yes
Suitable for surface mounting	Yes
Suitable for flush mounting	No
Suitable for clamp mounting	No
Suitable for bar mounting	No
Suitable for bearing/floor mounting	Yes
Suitable for crossbar mounting	No

Dimensions and weight

Height/depth	77.00 mm
Width	330.00 mm
Length	451.00 mm

Technical specifications

Suitable for pendant lights	No
Integrated emergency power supply	No
Device	Ballast electronic
Exchangeable control unit	No
Equipment supplied	Yes
With sensor of light	No
Energy efficiency class of the supplied lamp	A++, A+, A (LED)
Energy class	E
IFTTT compatible	Yes
Start of phase break	No
End of phase break	No
Rated current	735 mA
Nominal current of the LED at constant current	735 mA
Rated life L70/B10 at 25°C	100000 h
Rated life L70/B50 at 25°C	100000 h
Rated life L80/B10 at 25°C	70000 h
Rated life L80/B50 at 25°C	70000 h
Rated life L90/B10 at 25°C	30000 h
Rated life L90/B50 at 25°C	30000 h
Luminous efficacy of the lamp	120 lm/W
Luminaire efficiency	120 lm/W
Light distribution element	Focus lens
Light emission	Direct
Power factor (cos phi)	0.90
Luminous flux (Lumen)	18300 lm
Effective luminous flux	18300 lm
Photobiological risk group according to EN 62471	GR1
Protection class (IP)	IP66
Protection class against impacts (IK)	IK08
Wall mounting	Yes
Number of poles	2
Max. number of luminaires per circuit breaker B16	3
Max. number of luminaires per circuit breaker C16	4
Fire protection "D"	Yes
System power	150.00 W
Regulability	Orientable
Light distribution	Asymmetrical
Light source included	Yes
Light source included	Yes
Brushed surface	No
Harmonic distortion rate	20
Nominal room temperature according to IEC 62722-2-1	-30 .. +50 °C
Color temperature	3000 K
Glow-wire test according to IEC 60695-2-11	650 °C - 30 s
Type	LED not interchangeable
Type of wiring	Termination
Type of connection	Automatic bollard
Type of connection	File terminal
Color uniformity (mcAdam ellipse)	SDCM5
