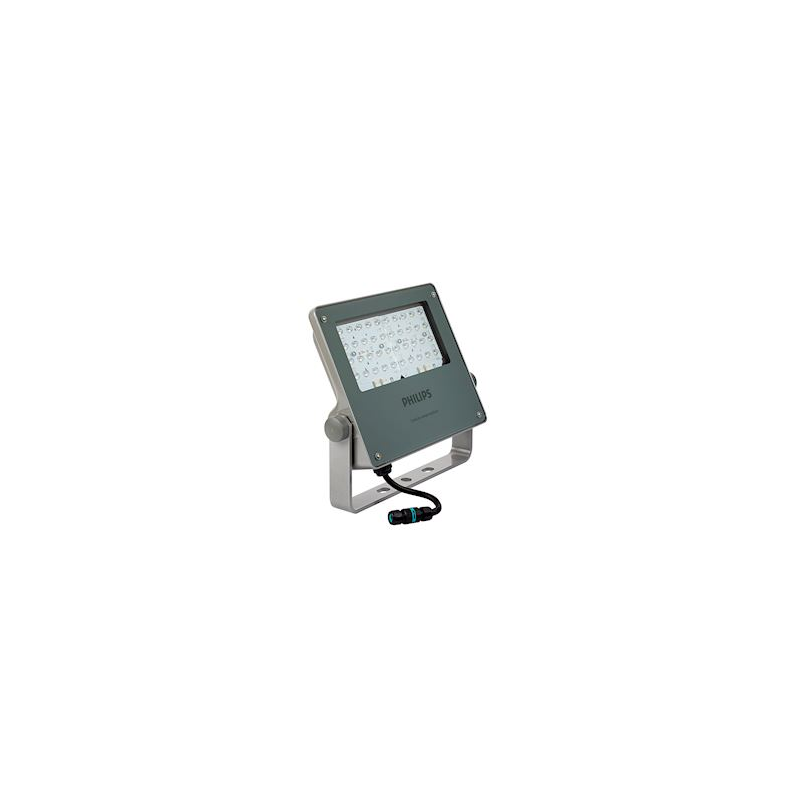

CoreLine tempo projector LED BVP125 730 On/Off SYM 106W 12000lm IP66 100khL90

905194
8718699905194
Product line: Coreline, Protection class (IP): IP66, Color rendering index (CRI): 70 .. 79, Color temperature: 3000 K
€697.04
€557.64 Save 20%
Tax included Delivery within 11 working days in Europe - Price for 1u.
Quantity
On order / 11 days

100% secure payments
Close
Description

CoreLine tempo projector LED BVP125 730 On/Off SYM 106W 12000lm IP66 100khL90 - 905194

CoreLine tempo projector LED BVP125 730 On/Off SYM 106W 12000lm IP66 100khL90
Color temperature
3000K
Beam angle
medium beam 20-40°
Luminous flux (Lumen)
12000lm
Protection class (IP)
IP66
Class electric
class I
Color rendering index (CRI)
70 .. 79

main features - Philips 905194

  • Product line: Coreline
  • Protection class (IP): IP66
  • Color rendering index (CRI): 70 .. 79
  • Color temperature: 3000 K
  • reference: Philips 905194 / EAN: 8718699905194

High Quality Product

Thanks to its aluminium structure this Coreline range luminaire offers you rock-solid strength and guaranteed longevity.
Philips
Philips

Find all the products of the brand Philips at the best price on the store domeashop.com.

See all products Philips
hotline
At your service

You wish to have information on our products or to make a remark or a suggestion on our store? Do not hesitate to contact us .

fast delivery
Optimized logistics!

Delivery times and stocks are indicated on each product sheet and are updated very regularly.

Your satisfaction: our priority

We do everything possible to provide you with quality products and we are listening to you so that you are fully satisfied with your purchases..

Technical specifications

Product information
ManufacturerPhilips
Reference905194
EAN8718699905194
Customs code94054239
Product lineCoreline
Design and finish
Case colorGrey
Material of the glassGlass transparent
MaterialAluminum
Light information
Beam angleFaisceau moyen 20-40°
Color of lightWhite
Color rendering index (CRI)70 .. 79
Electrical information
Class electricI
Nominal voltage220.0...240.0 V
Type of voltageAC
Installation / Implementation
Suitable for ceiling mountingNo
Suitable for surface mountingYes
Suitable for surface mountingYes
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for bar mountingNo
Suitable for bearing/floor mountingYes
Suitable for crossbar mountingYes
Dimensions and weight
Height/depth67.4 mm
Width265.0 mm
Length340.5 mm
Technical specifications
Suitable for pendant lightsNo
Integrated emergency power supplyNo
DeviceLED driver constant current
Exchangeable control unitYes
Equipment suppliedYes
With sensor of lightNo
Energy classD
Start of phase breakNo
End of phase breakNo
Rated current466.0 mA
Nominal current of the LED at constant current875 mA
Rated life L80/B10 at 25°C75000 h
Luminous efficacy of the lamp149 lm/W
Luminaire efficiency116 lm/W
Light distribution elementDiffuser
Light emissionDirect
Power factor (cos phi)0.98
Luminous flux (Lumen)12000.0 lm
Effective luminous flux12000 lm
Photobiological risk group according to EN 62471GR1
Protection class (IP)IP66
Protection class against impacts (IK)IK08
Intensity861.0 cd
Wall mountingYes
Number of lamps/modules40.0
Number of poles3
Max. number of luminaires per circuit breaker B168.0
Max. number of luminaires per circuit breaker C1613.0
Fire protection "D"No
Accepted lamp power101 W
System power88.0 W
RegulabilityOrientable
Light distributionSymmetrical
Wire surface1.5 mm²
Connectable conductor section7.0...14.0 mm²
Light source includedYes
Light source includedYes
Brushed surfaceYes
Harmonic distortion rate6.52
Nominal room temperature according to IEC 62722-2-1-40.0 .. 35.0 °C
Color temperature3000 K
Glow-wire test according to IEC 60695-2-11650 °C - 30 s
TypeLED not interchangeable
Type of wiringTermination
Type of connectionContact for insulation displacement connection
Type of connectionContact for insulation displacement connection
Color uniformity (mcAdam ellipse)SDCM3
Interface
Control via bluetoothNo
