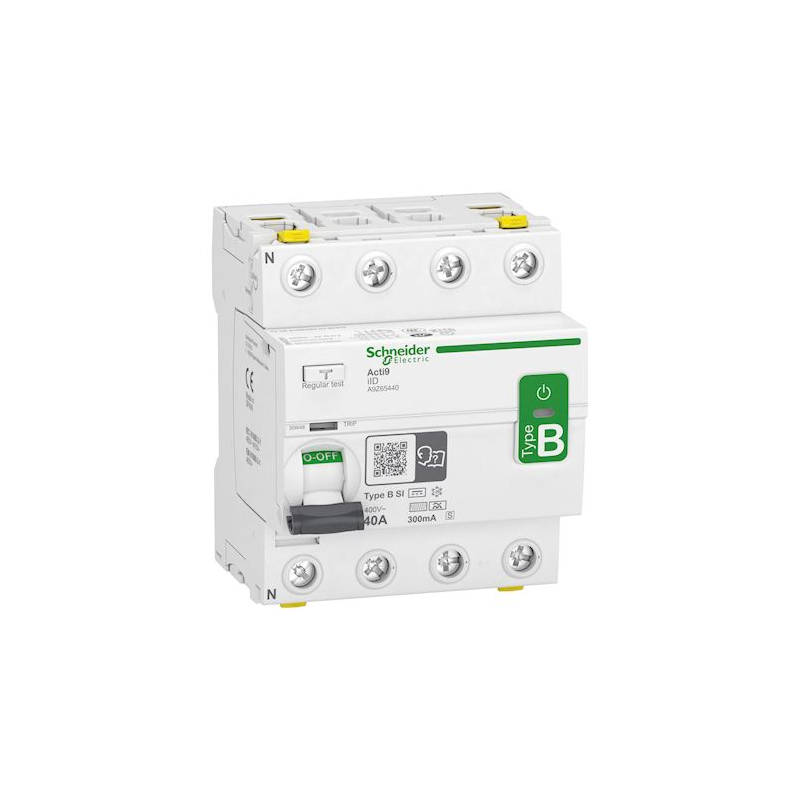

| Manufacturer | Schneider Electric |
| Reference | A9Z65440 |
| EAN | 3606489502867 |
| Customs code | 85363030 |
| Product line | Acti9 |
| Type of differential current | B |
| Type of voltage | AC |
| Width in number of modules | 4.0 |
| Embedding depth | 44.0 mm |
| Calibre | 40.0 A |
| Frequency | 50Hz |
| Protection class (IP) | IP20 |
| Number of poles | 4.0 |
| Auxiliary products that can be combined | Yes |
| Section of connection cable rigid | 1,0 .. 35,0 mm² |
| Selective | Yes |
| Sensitivity | 0.3 A |
| Ambient temperature in operation | -25,0 .. 60,0 °C |
| Tension | 400.0 V |
| Rated impulse withstand voltage (Uimp) | 6.0 kV |
| Rated insulation voltage (Ui) | 500.0 V |
| Shock current resistance | 5.0 kA |
| Type of installation | DIN rail |
